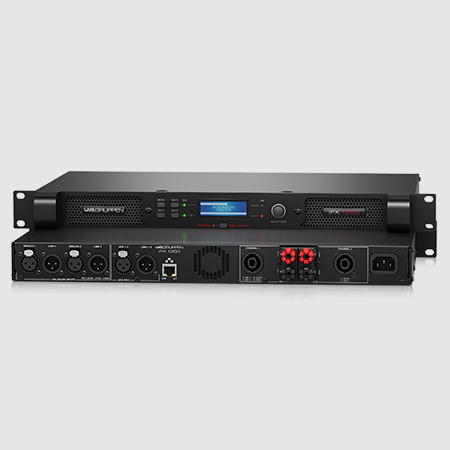

Lab.gruppen IPX 1200
Compact 1200 Watt 2-Channel DSP-Controlled Power Amplifier
Overview
The Lab.gruppen IPX 1200 is a highly advanced, 2-channel Class-D power amplifier that bridges the gap between raw muscle and precision digital processing. Engineered to deliver 1200 watts of total power in a sleek, 1U rack-mountable chassis, it is the ultimate workhorse for portable corporate AV systems, live PA setups, and permanent venue installations. At its core lies a cutting-edge DSP engine featuring 40 real-time, multi-slope parametric EQs, variable crossovers, and Lab.gruppen's renowned Speaker Protect Limiter. With its robust AES3 digital inputs offering seamless analog failover and ultra-efficient IDEEA power consumption technology, the IPX 1200 ensures your audio system operates safely, efficiently, and with uncompromising sonic clarity night after night.
Models & Range
- IPX 1200: 1200W Total Power (2 x 600 W at 4 Ohms)
- IPX 2400: 2400W Total Power (2 x 1200 W at 4 Ohms)
Key Features
- Cutting-Edge DSP Engine: Functions as a standalone digital audio processor, equipped with up to 40 real-time Parametric EQs, fully adjustable high- and low-pass filters, and comprehensive input/output delay settings.
- Speaker Protect Limiter: Features an innovative, software-controlled limiter that provides optimal impedance matching and absolute peak protection to safeguard expensive driver components.
- AES3 with Analog Failover: Connects directly to digital stage boxes or consoles via AES3 inputs. Built-in redundancy allows automatic, uninterrupted failover to analog inputs for mission-critical applications.
- IPX Controller Software: Offers fast, foolproof network setup with auto-discovery of all connected amplifiers. The touch-optimized GUI (available for PC, Mac, and iPad) enables quick grouping and highly intuitive setup of all DSP parameters over Ethernet.
- Integrated 4-Channel Mixer: Built-in input mixing allows for seamless multi-input blending and switching across analog and digital connections directly from the amplifier.
Technical Specifications
- Amplifier Topology: Class-D with proprietary IDEEA technology for reduced mains current draw and high efficiency
- Maximum Output Power (4 Ohms): 2 x 600 W per channel
- Maximum Output Power (2 Ohms): 2 x 500 W per channel
- Maximum Output Power (8 Ohms): 2 x 300 W per channel

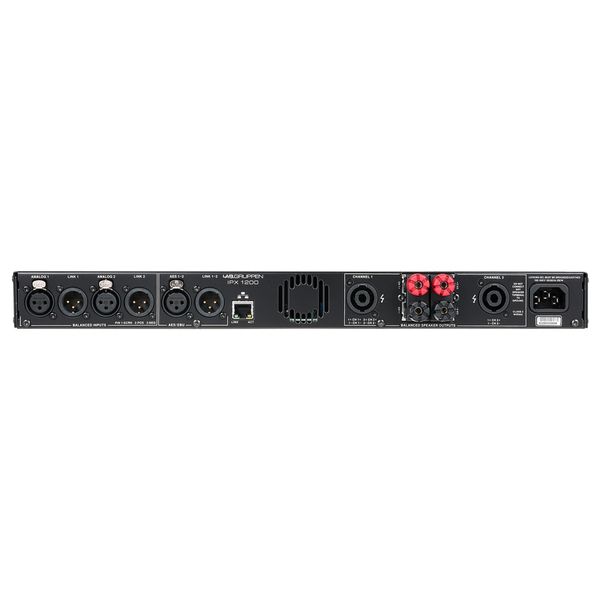

- Analog Inputs: 2 x Balanced XLR
- Digital Inputs: 1 x AES3 (AES/EBU) input via XLR
- Link Outputs: 3 x Balanced XLR link outputs
- Speaker Outputs: 2 x Neutrik speakON connectors and 2 x Binding Post outputs
- Network / Control: 1 x RJ-45 EtherCON port for remote IPX Controller software access
- Frequency Response: 10 Hz to 20 kHz (+0.5 / -1 dB)
- Total Harmonic Distortion (THD+N): < 0.1% (20 Hz - 20 kHz at 1 W); < 0.05% (at 1 kHz, 1 dB below clipping)
- Signal-to-Noise Ratio: > 102 dB
- Channel Crosstalk: > 80 dB at 1 kHz
- User Interface: Backlit LCD display with navigation buttons, rotary push-encoder, and horizontal output VU meters
- Power Supply: Universal switch-mode power supply (100–240 V, 50/60 Hz)
- Dimensions (H x W x D): 44 mm x 483 mm x 336 mm (1.7 in x 19.0 in x 13.2 in) - 1U Standard Rack
- Weight: 5.3 kg (11.7 lbs)
Included Accessories
- Standard IEC AC Power Cable
- Rear Support Mounting Brackets
- Quick Start Guide and Safety Information
- (Note: The IPX Controller software is available as a free download from the manufacturer's website)
