PGA_81

Item ID: 5

Shure PGA81

Shure PGA81 Cardioid Condenser Instrument Microphone

Overview

The Shure PGA81 is a professional-quality, small-diaphragm condenser microphone specifically engineered for the precise, uncolored capture of acoustic instruments. Whether deployed in a demanding live sound reinforcement setup or a critical studio recording environment, the PGA81 delivers a highly detailed, flat frequency response that faithfully reproduces the delicate nuances of acoustic guitars, pianos, strings, and drum overheads. Featuring a sleek, unobtrusive black metallic finish, this microphone seamlessly blends into stage environments while its cardioid polar pattern ensures excellent rejection of off-axis noise and high gain-before-feedback. For audio engineers seeking reliable, high-fidelity acoustic pickup without breaking the bank, the PGA81 is an indispensable tool.

Models & Range

• Full Range Models: PGA81-LC (Microphone only, cable not included), PGA81-XLR (Includes a 15-foot XLR-to-XLR cable)
• Subwoofer Models: Not applicable for microphones.

Key Features

• Flat-Response Capsule Design: Tuned for absolute clarity, providing an honest, uncolored reproduction of acoustic sources without artificially boosting frequencies.
• Exceptional Transient Response: The lightweight electret condenser diaphragm quickly responds to fast attacks, making it perfect for capturing the snap of percussion, cymbals, and acoustic guitar picking.
• Cardioid Polar Pattern: Tightly focuses on the primary sound source while rejecting ambient stage bleed and significantly reducing the risk of feedback in live monitor mixes.
• Discreet Industrial Design: Housed in a rugged cast zinc body with a black metallic finish and matching grille, offering an unobtrusive visual footprint on stage or on camera.

Technical Specifications

• Type: Electret Condenser
• Polar Pattern: Cardioid
• Frequency Response: 40 Hz to 18,000 Hz
• Output Impedance: 600 ohms
• Sensitivity: -48.5 dBV/Pa (3.8 mV) at 1 kHz (1 Pa = 94 dB SPL)
• Maximum SPL: 129.5 dB SPL (1 kHz at 1% THD, 1 kΩ load)
• Self-Noise: 20 dB SPL-A (A-weighted, typical)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Power Requirements: 48V DC phantom power (2.0 mA)
• Connector: Three-pin professional audio (XLR), male
• Housing: Cast zinc with black metallic finish
• Weight: 186 grams (6.6 oz)

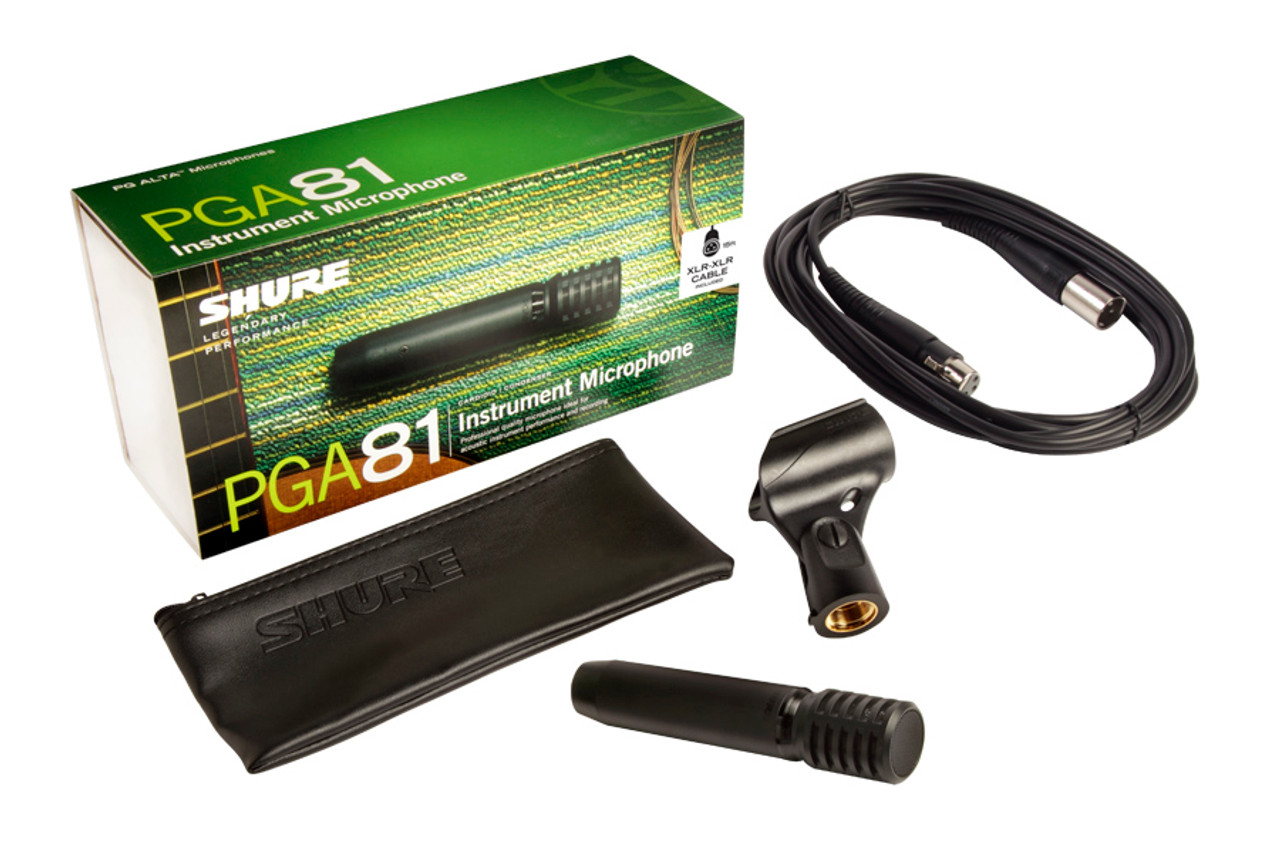

Included Accessories

• Break-resistant Microphone Stand Adapter (Clip)
• Zippered Storage Pouch
• 15-foot XLR-to-XLR Cable (Included only with the PGA81-XLR model)
• User Guide and Warranty Information
