speakON

Item ID: 3

$8.00 $5.50

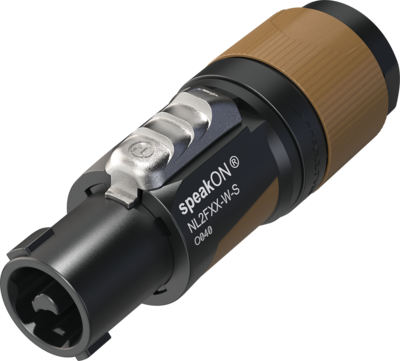

Neutrik speakON FXX Series Connectors

2-Pole, 4-Pole, and 8-Pole Female Cable Connectors

Overview

The Neutrik speakON FXX Series represents the next generation of the definitive industry standard for professional loudspeaker connections. Engineered specifically to handle high-power audio environments, these premium female cable connectors are the ultimate choice for touring rigs, live PA systems, and fixed installations. The FXX series elevates the classic speakON design with a more rugged high-impact thermoplastic housing, improved chuck-type strain relief, and strict compliance with the latest global safety standards. Delivering pristine signal transfer and foolproof handling, the speakON FXX ensures your audio system stays securely connected, even in the most demanding live performance scenarios.

Models & Range

• Full Range Models: NL2FXX-W-S (2-pole), NL4FXX-W-S (4-pole for standard cables), NL4FXX-W-L (4-pole for larger diameter cables), NL8FXX (8-pole for complex multi-way systems).
• Subwoofer Models: Not applicable for connectors.

Key Features

• Fail-Safe Twist-Lock System: Features Neutrik's renowned quick-lock mechanism with an ergonomic latch, guaranteeing a secure connection that absolutely will not vibrate loose or pull out accidentally.
• Massive Power Handling: Rated to handle up to 40 A RMS continuous current, safely and effortlessly transferring power to high-wattage professional loudspeaker cabinets and subwoofers.
• Solderless, Rapid Assembly: Designed with intuitive, heavy-duty screw-type terminals that allow for fast, reliable field repairs and custom cable assembly without the need for a soldering iron.
• Advanced Strain Relief: Employs Neutrik’s signature chuck-type strain relief combined with a rugged two-compound housing, providing unmatched protection for cables up to 11 mm (or larger on specific 'L' models) against extreme pulling and twisting.

Technical Specifications

• Connector Type: speakON female cable connector
• Number of Contacts: 2, 4, or 8 (depending on specific model selected)
• Current Rating per Contact: Up to 40 A RMS continuous
• Contact Resistance: ≤ 2 mΩ
• Contact Material: Brass with Silver (Ag) or Bronze plating for optimal conductivity and low resistance
• Housing Material: High-impact, rugged thermoplastic (Polyamide)
• Locking Device: Twist lock with metal release latch
• Termination: Screw-type terminals (designed for stranded wire)
• Cable O.D. Acceptance: 6 mm to 11 mm (Standard models); up to 14 mm (Large 'L' models)
• Compatibility: Fully mates with all corresponding industry-standard Neutrik speakON chassis connectors

Included Accessories

• Connectors ship as modular, easy-to-assemble components including the main housing, insert with contacts, chuck strain relief, and threaded bushing.
• (Note: Color-coded bushings and rings for channel identification are available as optional add-ons and sold separately.)
