XLR Connectors

Item ID: 2

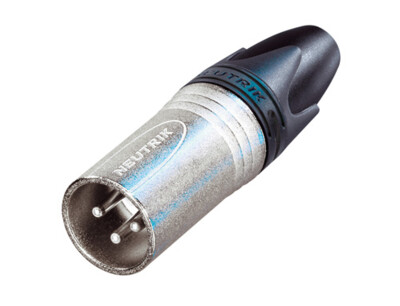

Neutrik XLR Connectors

3-Pin, 4-Pin, 5-Pin, and Multi-Pin Male & Female Connectors

Overview

Neutrik XLR connectors are the undisputed global industry standard for professional audio, video, and lighting infrastructure. Engineered for pristine signal integrity and relentless durability, these connectors are the backbone of live sound stages, broadcast studios, and permanent installations worldwide. Featuring a precision-machined design, robust zinc die-cast housing, and Neutrik’s signature chuck-type strain relief, they guarantee secure, low-resistance connections under the most demanding environmental conditions. Whether routing balanced audio or transmitting DMX lighting control, Neutrik XLRs deliver uncompromising reliability.

Models & Range

• Cable Mount Models: XX Series (The worldwide standard for cable connections), RX Series (Right-angle design for tight spaces), EMC Series (Enhanced RF screening).
• Chassis & Panel Mount Models: DLX Series (Standard D-size metal housing for rack panels), A/B Series (High-density PCB mount options for equipment manufacturers).

Key Features

• Rugged Latch Lock System: Provides a secure, fail-safe mating mechanism that prevents accidental disconnects during performances or heavy handling.
• Chuck-Type Strain Relief: Advanced internal cable clamping system provides superior pull-out force resistance and protects the cable jacket and solder joints from stress.
• Premium Contact Materials: Utilizes high-conductivity gold- or silver-plated contacts to ensure ultra-low contact resistance and flawless signal transmission.
• Indestructible Housing: Built with a heavy-duty zinc die-cast shell (available in nickel or black metal finishes) to withstand physical abuse, crushing, and harsh stage conditions.

Technical Specifications

• Connector Type: XLR (Male and Female, Cable and Chassis configurations)
• Pin Configurations: Available in 3-pin, 4-pin, 5-pin, 6-pin, and 7-pin versions
• Contact Resistance: ≤ 3 mΩ
• Contact Material: Brass or Bronze, with Silver (Ag) or Gold (Au) overplating
• Housing Material: Zinc diecast (ZnAl4Cu1)
• Locking Device: Latch lock (Stainless steel or robust metal)
• Termination / Wiring: Solder contacts (Cable models) or screw terminals/PCB mount (Select chassis models)
• Cable O.D. Acceptance: Typically 3.5 mm to 8.0 mm (Varies slightly by series and boot size)
• Applications: Balanced analog audio, AES/EBU digital audio, DMX lighting control, and intercom systems

Included Accessories

• Connectors are shipped as modular, ready-to-assemble units (typically including the main housing, contact insert, chuck strain relief, and threaded boot).
• (Note: Pre-assembled accessories are not standard, but optional color-coding rings and boots can be purchased separately for custom organization.)
