QX2442USB

Item ID: 19

Behringer Mixers

Call for Price

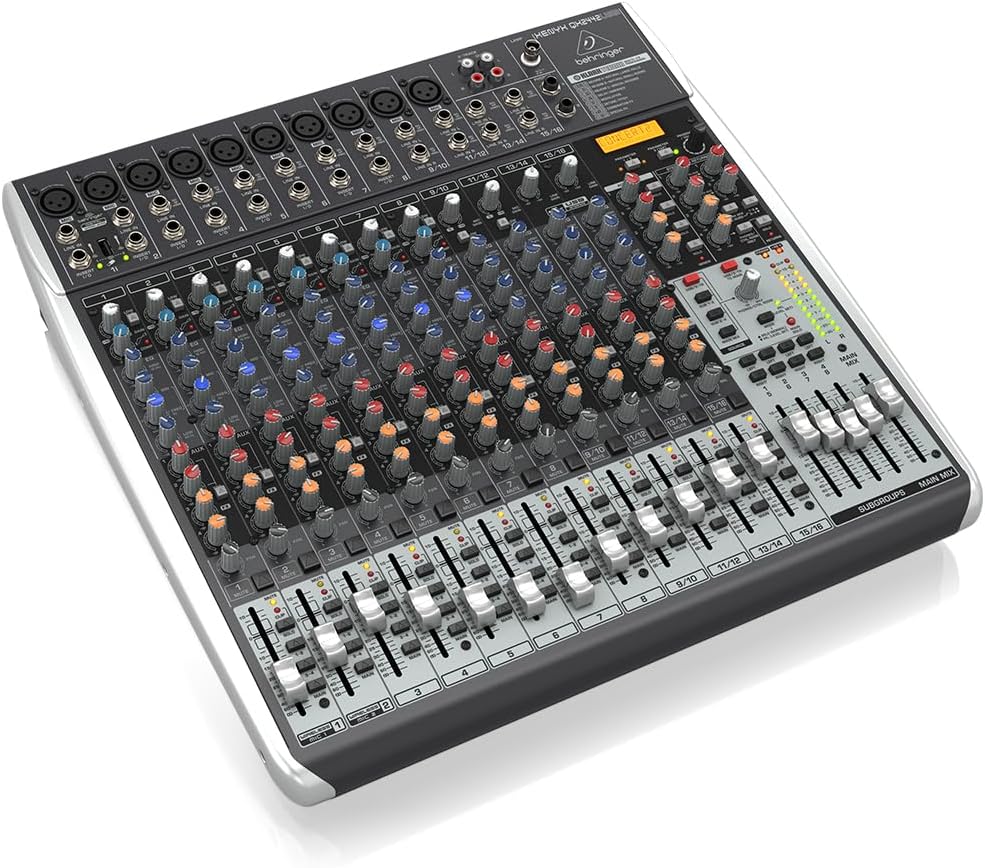

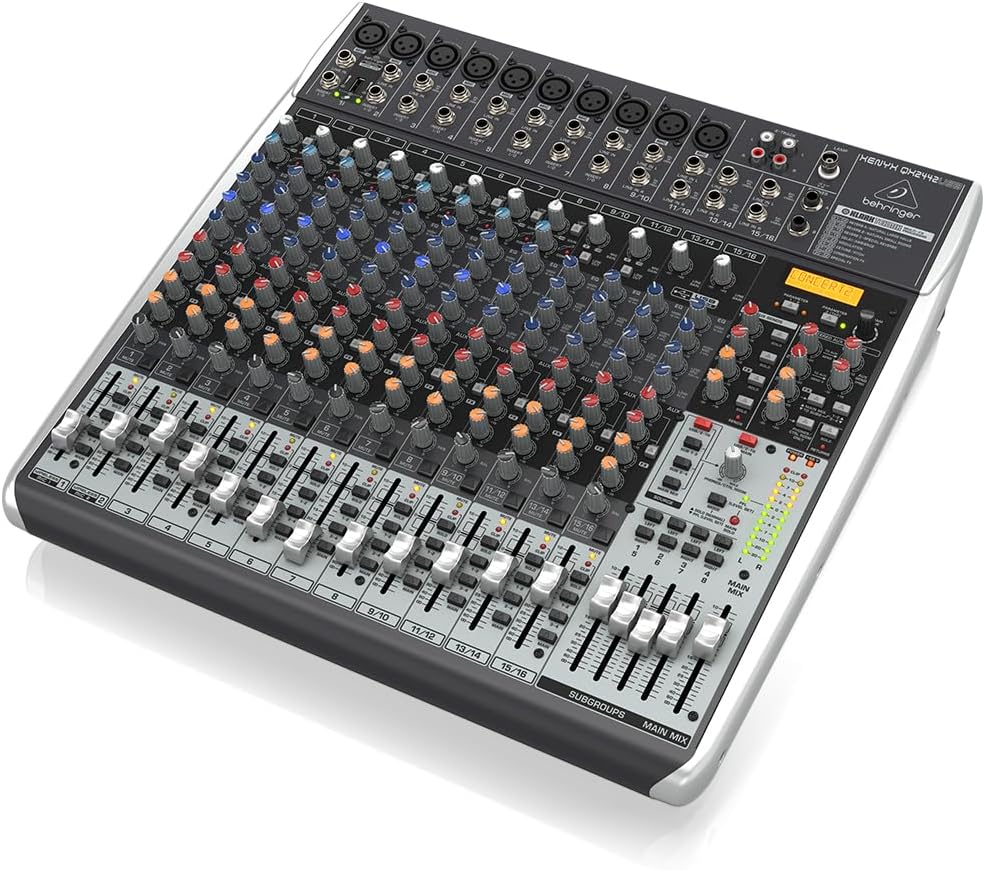

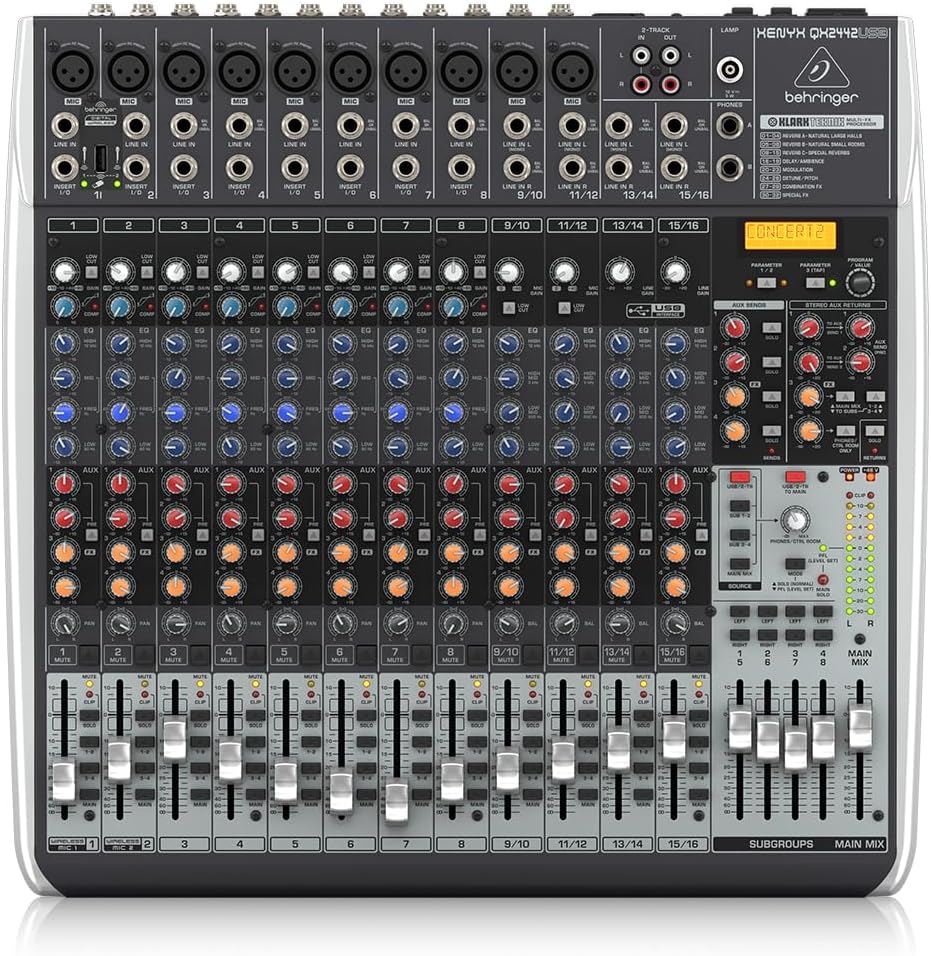

Behringer XENYX QX2442USB

Premium 24-Input 4/2-Bus Mixer with XENYX Mic Preamps and Compressors, KLARK TEKNIK Multi-FX Processor, Wireless Option and USB/Audio Interface

Overview

The Behringer XENYX QX2442USB stands as the flagship of the XENYX QX series, engineered to handle the complex routing and extensive input demands of professional live performances, larger houses of worship, and serious recording studios. Packing a massive 24 inputs, this console delivers uncompromising audio transparency through ten studio-grade XENYX microphone preamps. The QX2442USB is designed for ultimate control, offering true 4/2-bus routing with four independent subgroups, direct outputs on every mono channel for multitrack recording, and four aux sends per channel. Combined with eight one-knob compressors, an integrated KLARK TEKNIK 24-bit multi-FX processor, and a class-compliant USB audio interface, this mixer provides top-tier analog warmth with the digital flexibility required by modern audio engineers.

Models & Range

Full Range Models: As the flagship model in the QX series, the QX2442USB offers the maximum channel count, sub-bus routing, and aux sends available in this footprint. It is the definitive choice for professionals outgrowing the 18-input QX1832USB, specifically adding four independent subgroups, direct outputs for multitrack recording, and an expanded roster of ten microphone preamps.

Key Features

Massive Input Capacity & Preamps: Ten award-winning XENYX mic preamps offer an incredible 130 dB of dynamic range and bandwidth extending from below 10 Hz to well above 200 kHz, ensuring crystal-clear reproduction of vocals and acoustic instruments.
Extensive 4/2-Bus Routing: Take total control of your mix with four independent subgroups featuring dedicated faders and output jacks. This allows you to easily group multiple sources—like an entire drum kit or vocal choir—to a single fader, or route them to external recording devices.
Studio-Grade Dynamics: Eight intuitive one-knob compressors on the mono channels allow you to dial in the perfect amount of compression for punchy bass lines, tight snares, and upfront vocals, complete with dedicated LED indicators.
Advanced "British" Equalization: All mono channels feature neo-classic "British" 3-band EQs with a semi-parametric sweepable mid-band for surgical frequency sculpting. Stereo channels are equipped with a musical 4-band fixed EQ.
Pro-Level Aux & Insert Routing: Four aux sends per channel (two pre/post switchable for monitoring, two post for FX) provide massive flexibility for stage monitors and outboard gear. Direct outputs and inserts on all mono channels make integrating external processors or multitrack recorders seamless.
KLARK TEKNIK FX Engine: Built-in 24-bit digital processor featuring an LCD display, tap tempo, and 100 world-class presets including premium reverbs, choruses, delays, and multi-effects.
Wireless & USB Integration: A dedicated top-panel USB port provides instant connectivity for Behringer’s ULM digital wireless systems. The built-in stereo USB audio interface allows for direct, zero-latency recording and playback with your Mac or PC.

Technical Specifications

Mixer Type: Analog 24-input console with USB interface and digital effects
Total Input Channels: 24
Microphone Preamps: 10 x XENYX (balanced XLR) with switchable +48V Phantom Power
Mono Mic/Line Inputs: 8 x 1/4" TRS (balanced/unbalanced)
Stereo Line Inputs: 4 x 1/4" TRS Left/Right pairs (two of which also feature XLR mic inputs)
Channel EQ (Mono): Neo-classic "British" 3-band EQ with semi-parametric sweepable mid-band
Channel EQ (Stereo): 4-band fixed EQ for optimized tonal shaping
Dynamic Processing: 8 x One-knob compressors with LED activity indicators (on channels 1-8)
Effects Processor: 24-bit KLARK TEKNIK DSP with 100 presets, LCD display, dual-parameter control, and tap tempo
Aux Sends: 4 per channel (2 Pre/Post fader switchable, 2 Post fader for internal FX or external send)
Aux Returns: 4 x Stereo 1/4" TRS multi-functional returns
Bus/Routing: Main Stereo Mix + 4 Subgroups with independent outputs
Faders: 60mm long-wearing, logarithmic-taper faders

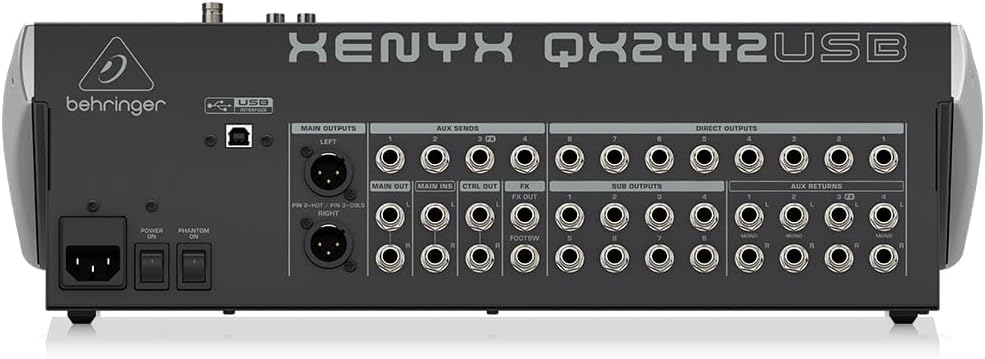

Main Outputs: 2 x balanced XLR, 2 x 1/4" TRS
Additional Outputs: 8 x 1/4" TRS (Direct Outs on Ch 1-8), 4 x 1/4" TRS (Subgroup Out), 1 x 1/4" TRS (Control Room Out), 1 x 1/4" TRS (Headphone Out), 1 x Stereo RCA (2-Track Out)
Insert Points: 1/4" TRS inserts on all mono channels and Main Mix for outboard processing
USB Connectivity: USB Type-B (2-in/2-out interface, 16-bit/48kHz), plus dedicated USB Type-A for ULM Wireless System
Power Supply: "Planet Earth" internal switch-mode power supply (100-240V) for noise-free audio and low power consumption
