MG series

Item ID: 14

Yamaha MG Series Mixers

MG20 / MG20X, MG16 / MG16X, MG12 / MG12X, MG10 / MG10X, MG06 / MG06X

Overview

The Yamaha MG Series represents a standard of excellence in compact mixing consoles, delivering uncompromised sound quality, robust reliability, and profound versatility for both live sound reinforcement and studio recording. Engineered with a relentless focus on pure, transparent audio, these mixers are built around studio-grade discrete class-A microphone preamps and premium internal components. Housed in a tour-ready metal chassis, the MG Series is designed to withstand the rigors of professional use while maintaining an intuitive, straightforward interface. Whether you are mixing a live band in a local venue, routing audio for a permanent installation, or capturing tracks in a home studio, the MG Series provides the pristine sonic foundation and dynamic control professional audio engineers demand.

Models & Range

• MG20 / MG20X: 20-channel analog mixing console designed for larger live ensembles and installations. Features 16 mic inputs, 20 line inputs (12 mono + 4 stereo), 4 GROUP buses, and 1 stereo bus. The "X" model features built-in SPX digital effects.

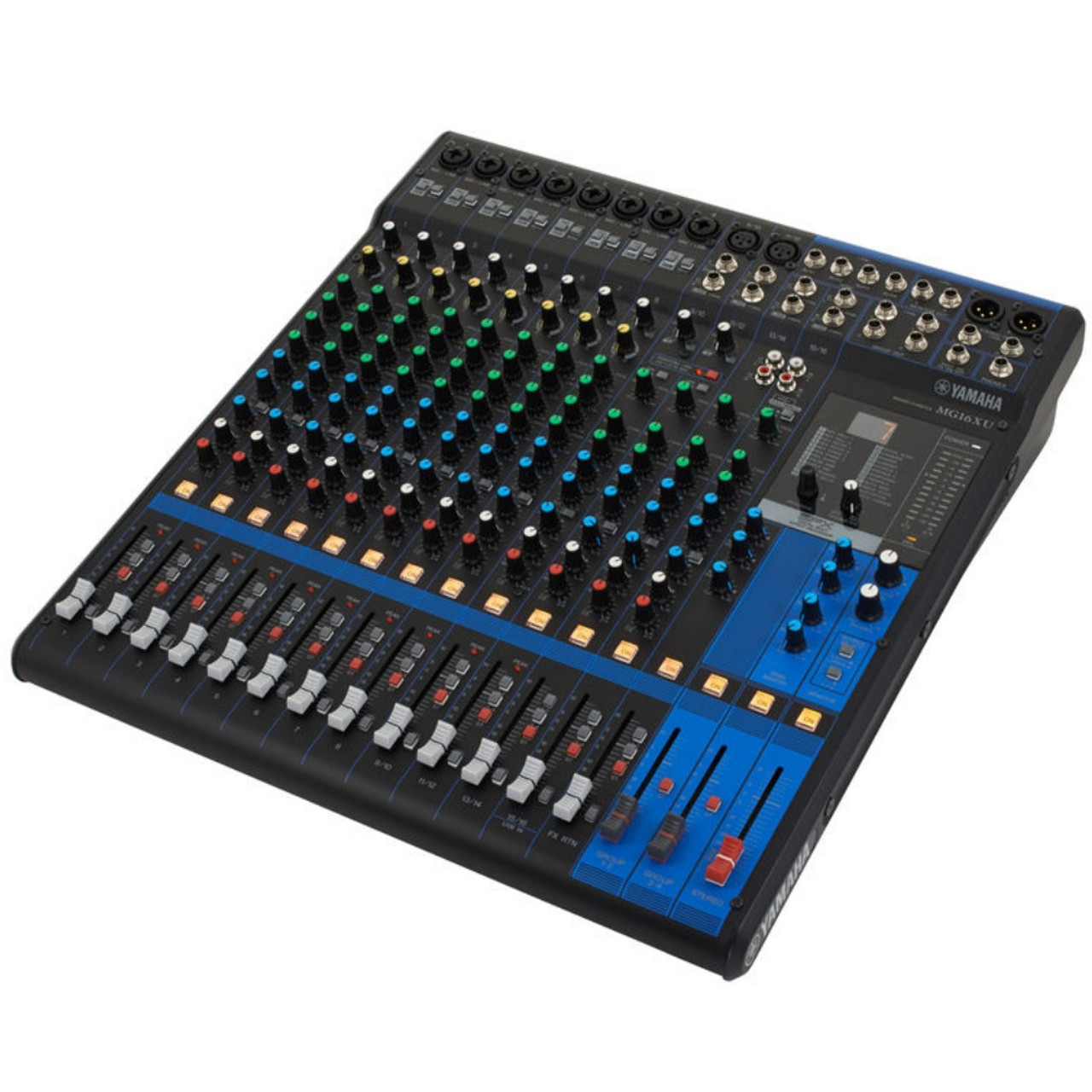

• MG16 / MG16X: 16-channel analog mixing console offering a perfect balance of I/O for mid-sized bands. Features 10 mic inputs, 16 line inputs (8 mono + 4 stereo), 4 GROUP buses, and 1 stereo bus. The "X" model features built-in SPX digital effects.

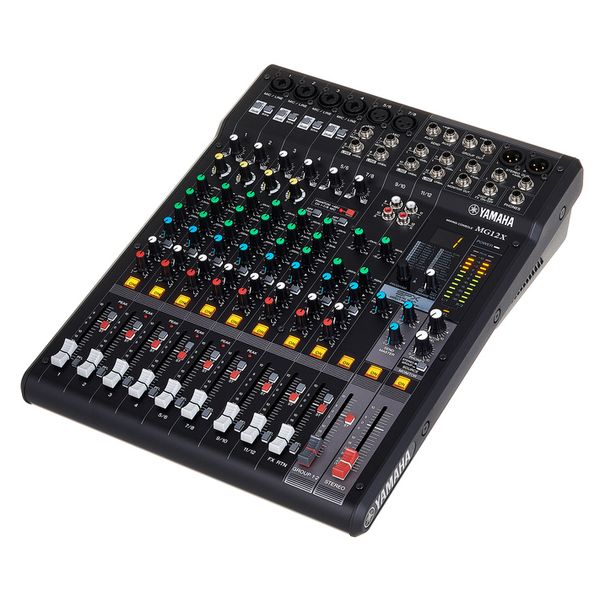

• MG12 / MG12X: 12-channel analog mixing console ideal for smaller setups and sub-mixing. Features 6 mic inputs, 12 line inputs (4 mono + 4 stereo), 2 GROUP buses, and 1 stereo bus. The "X" model features built-in SPX digital effects.

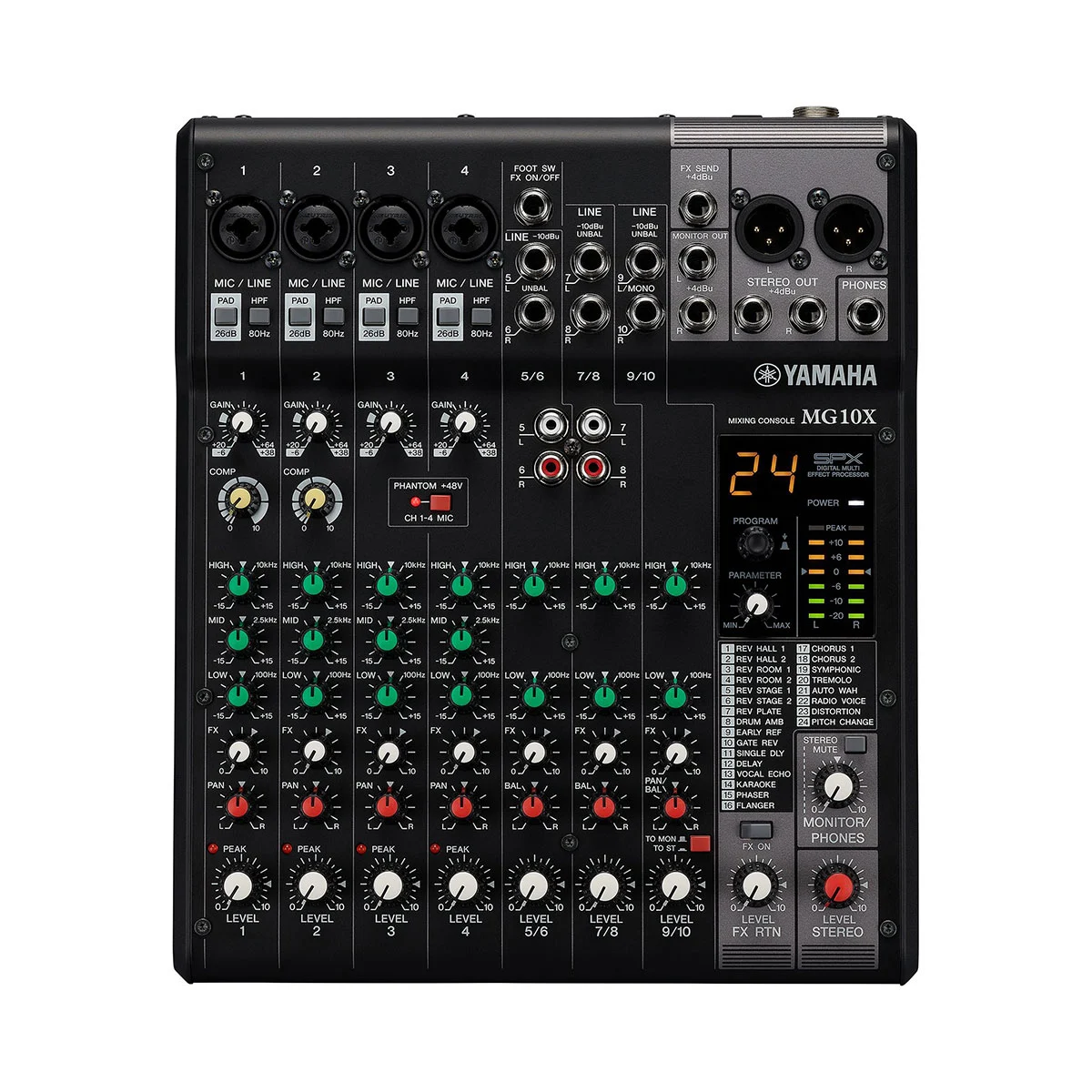

• MG10 / MG10X: 10-channel analog mixing console perfect for portable rigs and podcasting. Features 4 mic inputs, 10 line inputs (4 mono + 3 stereo), and 1 stereo bus. The "X" model features built-in SPX digital effects.

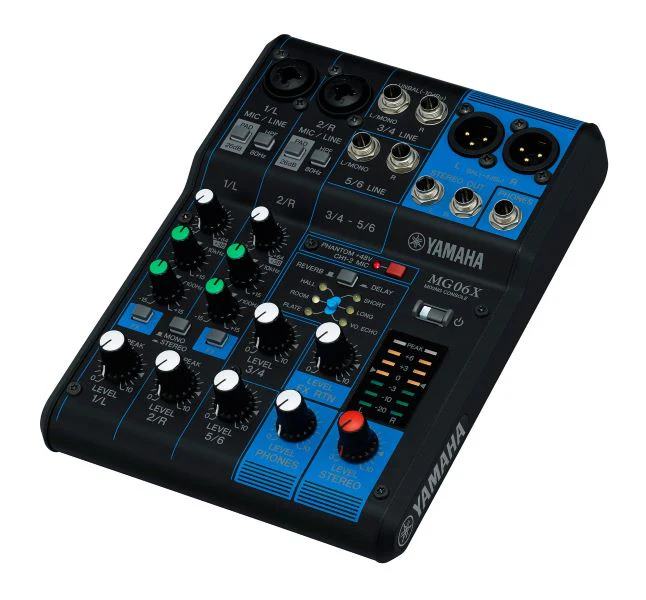

• MG06 / MG06X: 6-channel ultra-compact analog mixing console for solo performers or basic routing needs. Features 2 mic inputs, 6 line inputs (2 mono + 2 stereo), and 1 stereo bus. The "X" model features built-in SPX digital effects.

Key Features

• Discrete Class-A D-PRE Mic Preamps: Utilizes an inverted Darlington circuit to deliver fat, natural-sounding bass and smooth, soaring highs with incredibly low distortion, capturing the full nuance of your microphones.
• Intuitive 1-Knob Compressors: (Available on select channels) Provides instant access to optimized compression settings with a single rotary control, allowing you to easily tame dynamic vocals, punch up bass lines, and tighten snare drums without complex parameter adjustments.
• High-Quality Custom Op-Amp: The MG01 op-amp ensures the cleanest possible signal path, featuring redesigned internal circuitry to prioritize sound quality and minimize noise over sheer electrical efficiency.
• Tour-Grade Metal Chassis: Built to endure professional environments, the rugged, impact-resistant powder-coated metal housing offers superior convection cooling and shields internal circuitry from physical damage and electromagnetic interference.
• Professional Balanced Connectivity: Neutrik XLR balanced inputs and outputs ensure secure connections and noise-free signal transmission over long cable runs, complete with global +48V phantom power for condenser microphones and DI boxes.
• SPX Digital Effects (X Models Only): Integrates Yamaha’s renowned SPX multi-effects processing, offering a comprehensive suite of high-resolution reverbs, delays, modulation, and pitch effects to add depth and polish to your mix.

Technical Specifications

• Mixing Capability: Analog routing architecture with model-specific mono and stereo channel configurations
• Microphone Preamps: D-PRE (Discrete Class-A with Inverted Darlington circuit)
• Phantom Power: +48V (Switchable globally across mic inputs)
• Input Channel EQ (Larger Models): 3-band (High, Mid, Low) with sweepable mid on mono channels
• Input Channel EQ (Smaller Models): 2-band (High, Low) or standard 3-band on mono channels
• Dynamics Processing: 1-Knob analog compressor (available on dedicated mono mic/line channels)
• Effects Processing (X Models): SPX algorithm with 24 distinct programs and adjustable parameters
• Output Connectors: XLR balanced and 1/4" TRS balanced main stereo outputs
• Power Supply: Internal universal power supply (MG12, MG16, MG20) / AC Adapter (MG06, MG10)
• Construction: Powder-coated steel chassis

Included Accessories

• Power Supply: AC Power Cord (for MG12, MG16, MG20) or AC Power Adapter (for MG06, MG10)
• Documentation: Comprehensive Owner's Manual and Technical Specifications booklet

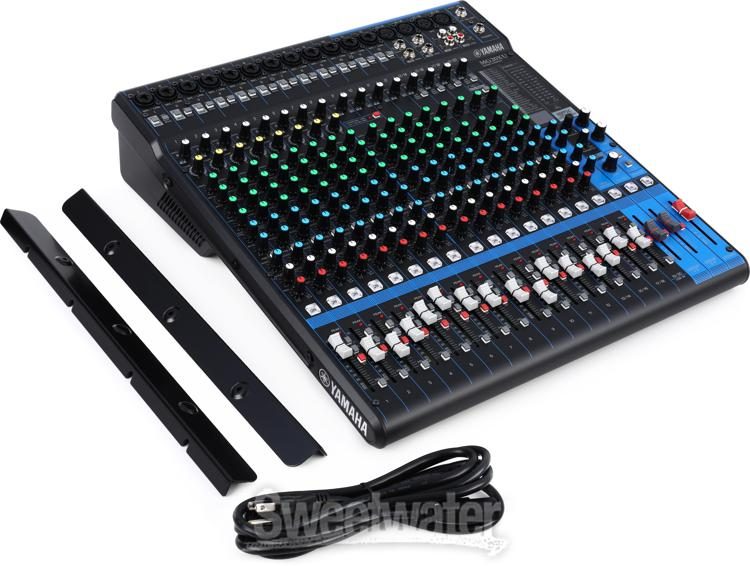

• Mounting Hardware: Rack-mount ears included standard with MG16/MG16X and MG20/MG20X models (Available separately as an optional accessory for MG12/MG12X)
