MGP Series

Item ID: 13

Yamaha MGP Series Mixing Consoles

MGP32X, MGP24X, MGP16X, and MGP12X Models

Overview

The Yamaha MGP Series represents a masterful fusion of analog authenticity and high-resolution digital innovation. Designed for touring bands, houses of worship, corporate A/V, and premium venue installations, these consoles capture the warmth and musicality of classic analog gear while harnessing the power of advanced digital signal processing. At the heart of the MGP series are studio-grade discrete Class-A D-PRE mic preamps and Yamaha's proprietary X-pressive EQ, which accurately models the behavior of sought-after vintage modules. Paired with a unique DSP-driven Stereo Hybrid Channel and high-end dual digital effects, the MGP Series delivers unparalleled sonic quality and intelligent workflow in a rugged, tour-ready chassis.

Models & Range

• MGP32X: 32-channel flagship console featuring 24 mono inputs, 4 stereo inputs, 4 Group buses, a Stereo bus, 6 AUX sends, 2 FX sends, and Matrix outputs. (19.0 kg / 41.9 lbs)

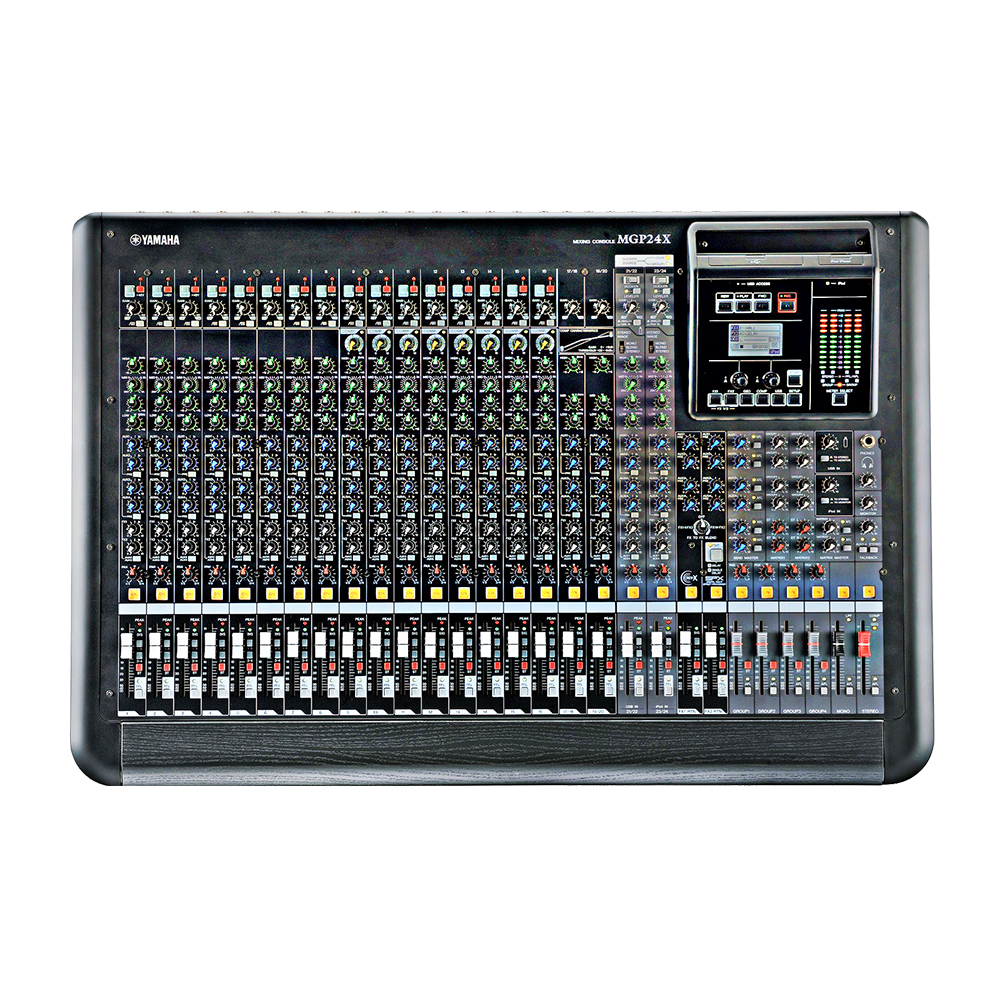

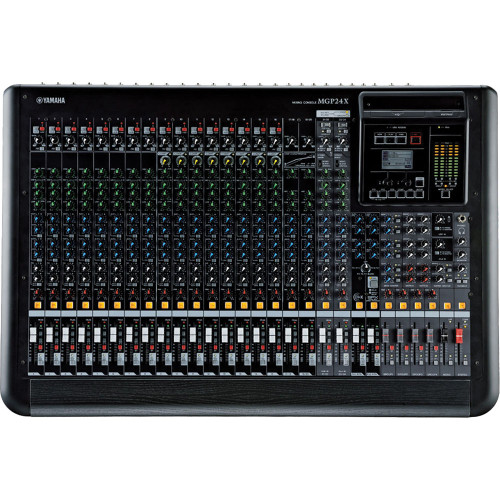

• MGP24X: 24-channel console featuring 16 mono inputs, 4 stereo inputs, 4 Group buses, a Stereo bus, 6 AUX sends, 2 FX sends, and Matrix outputs. (15.5 kg / 34.2 lbs)

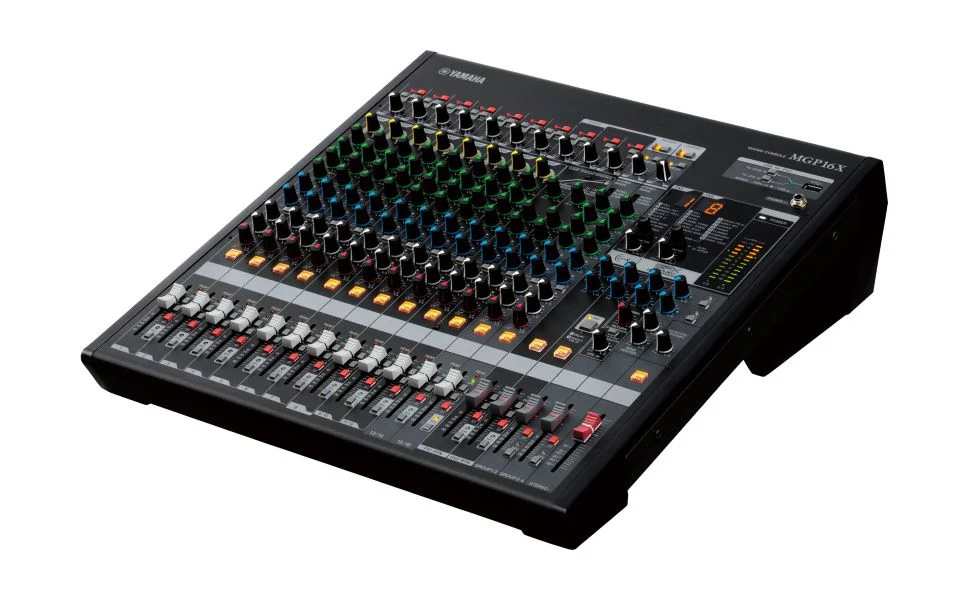

• MGP16X: 16-channel compact console featuring 8 mono inputs, 4 stereo inputs, 4 Group buses, a Stereo bus, 2 AUX sends, and 2 FX sends. (9.0 kg / 19.8 lbs)

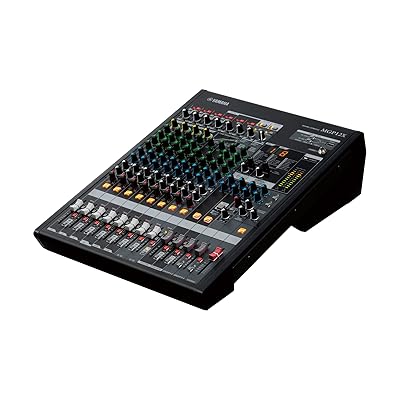

• MGP12X: 12-channel ultra-compact console featuring 4 mono inputs, 4 stereo inputs, 4 Group buses, a Stereo bus, 2 AUX sends, and 2 FX sends. (7.0 kg / 15.4 lbs)

Key Features

• Studio-Grade D-PRE Preamps: Discrete Class-A mic preamps utilize an inverted Darlington circuit design, delivering exceptionally fat, rich low-end and smooth, soaring highs with massive headroom and switchable 48V phantom power.
• X-pressive EQ: Powered by Yamaha’s acclaimed Virtual Circuitry Modeling (VCM) technology, this EQ reproduces the exact tonal character and musical shelving of classic vintage analog equalizers.
• Intelligent Stereo Hybrid Channel: A dedicated DSP-driven channel offering automated solutions for live sound, including a Priority Ducker (automatically drops background music when a mic is used), an Auto Leveler (smooths out varying playback volumes), and a Stereo Image adjuster.
• Advanced 1-Knob Compressors: Instantly dial in optimized compression to vocals or instruments via a single rotary control, complete with dedicated LED indicators for visual gain-reduction feedback.
• Dual Premium Digital Effects: Features two independent studio-quality effects engines: high-resolution REV-X (premium Hall, Room, and Plate reverbs) and the legendary SPX processor featuring 16 versatile multi-effects parameters.
• Deep iOS Integration: Connect your iPod or iPhone via USB for high-fidelity digital playback and charging. The free Yamaha MGP Editor app unlocks deeper, granular control over DSP settings, effects parameters, and the Hybrid Channel routing.

Technical Specifications

• Frequency Response: +0.5 / –1.0 dB (20 Hz – 20 kHz)
• Total Harmonic Distortion (THD): 0.02% (20 Hz – 20 kHz @ +14 dBu)
• Equivalent Input Noise (EIN): –128 dBu
• Residual Output Noise: –92 dBu
• Crosstalk: –74 dB @ 1 kHz
• Mic Preamps: Class-A discrete D-PRE with 48V Phantom Power
• Equalization: 3-band X-pressive EQ with sweepable mid-band (on mono channels)
• Compression: Upgraded 1-knob compressors with LED indicators on all mono channels
• Digital Effects: Dual engines (REV-X and SPX) operable simultaneously
• Power Supply: Internal multi-voltage power supply (100V-240V) for reliable use anywhere in the world
• Power Consumption: Ranges from 45W (MGP12X) to 86W (MGP32X)
• Chassis Construction: Rugged, impact-resistant powder-coated metal chassis
• Rack Mounting: Reversible side panels allow for immediate 19-inch rack mounting (MGP12X and MGP16X models)

Included Accessories

• Standard IEC AC Power Cable
• Integrated rack-mount ears (reversible side panels)
• Owner's Manual and Technical Documentation
