Behringer WING

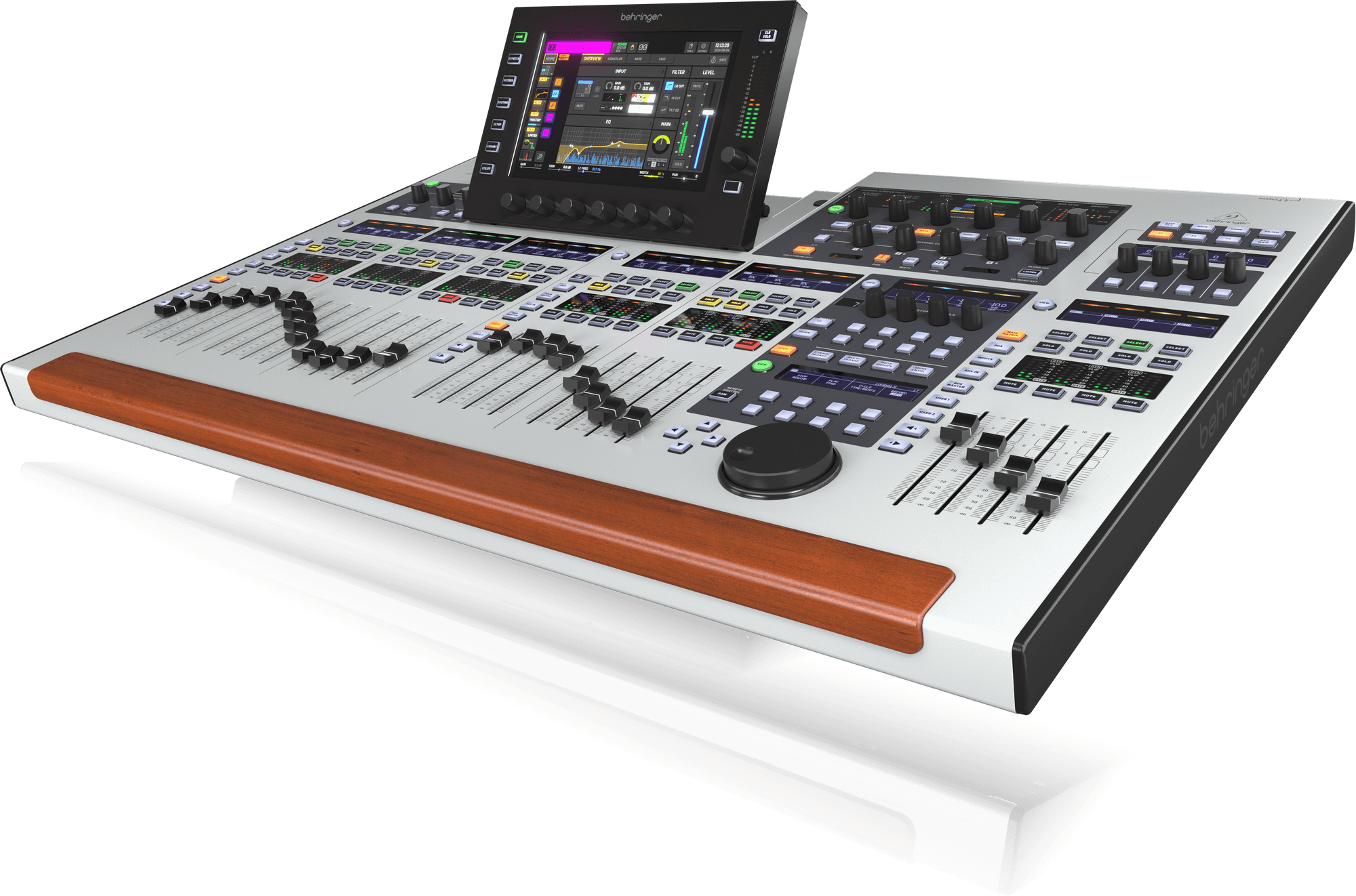

Behringer WING 48-Channel Digital Mixing Console

Overview

The Behringer WING represents a complete paradigm shift in digital mixing, offering unprecedented flexibility, processing power, and user-centric workflow for professional live sound, broadcast, and studio production. Moving beyond traditional channel constraints, the WING focuses on "Sources" rather than inputs, allowing for a highly intuitive and customizable mixing experience. Centered around a massive, vibrant 10-inch capacitive touchscreen and 24 buttery-smooth motorized faders, the WING puts unparalleled control at your fingertips. With extraordinary routing capabilities, massive AES50 network integration, and a premium rack of studio-grade vintage and modern effect emulations, the WING is a next-generation powerhouse engineered to handle the most demanding audio environments with ease.

Models & Range

• Full Range Models: WING (Flagship desktop console), WING Compact (Reduced footprint for tighter spaces), WING Rack (Rackmountable mixing core)
• Subwoofer Models: Not applicable for mixing consoles.

Key Features

• 10-Inch Capacitive Touchscreen: A high-resolution, highly responsive touch display provides fluid navigation, deep channel editing, and a fully customizable interface that adapts to your workflow.
• Massive Stereo Architecture: Boasts 48 stereo input channels and 28 stereo buses, providing immense processing power and advanced routing flexibility for complex in-ear monitor mixes or large-scale multi-track recording.
• Exceptional I/O and Networking: Features 3 AES50 ports capable of handling up to 144 input and output channels, plus Ultranet integration for personal monitoring systems, ensuring massive scalability for touring and installed sound.
• Premium Onboard FX Rack: Loaded with top-tier emulations of legendary vintage hardware, EQs, compressors, and reverbs, delivering studio-grade polish without the need for external outboard gear.
• Configurable Motorized Faders: 24 high-quality 100mm motorized faders divided into three fully customizable sections, allowing engineers to build custom layers that fit their exact mixing style.

Technical Specifications

• Channels: 48 stereo input channels (all with full processing)
• Buses: 28 stereo buses (16 stereo aux buses, 8 stereo matrices, 4 stereo mains)
• Faders: 24 motorized 100mm faders (customizable across multiple layers)
• Display: 10-inch high-resolution, capacitive touch screen with adjustable tilt

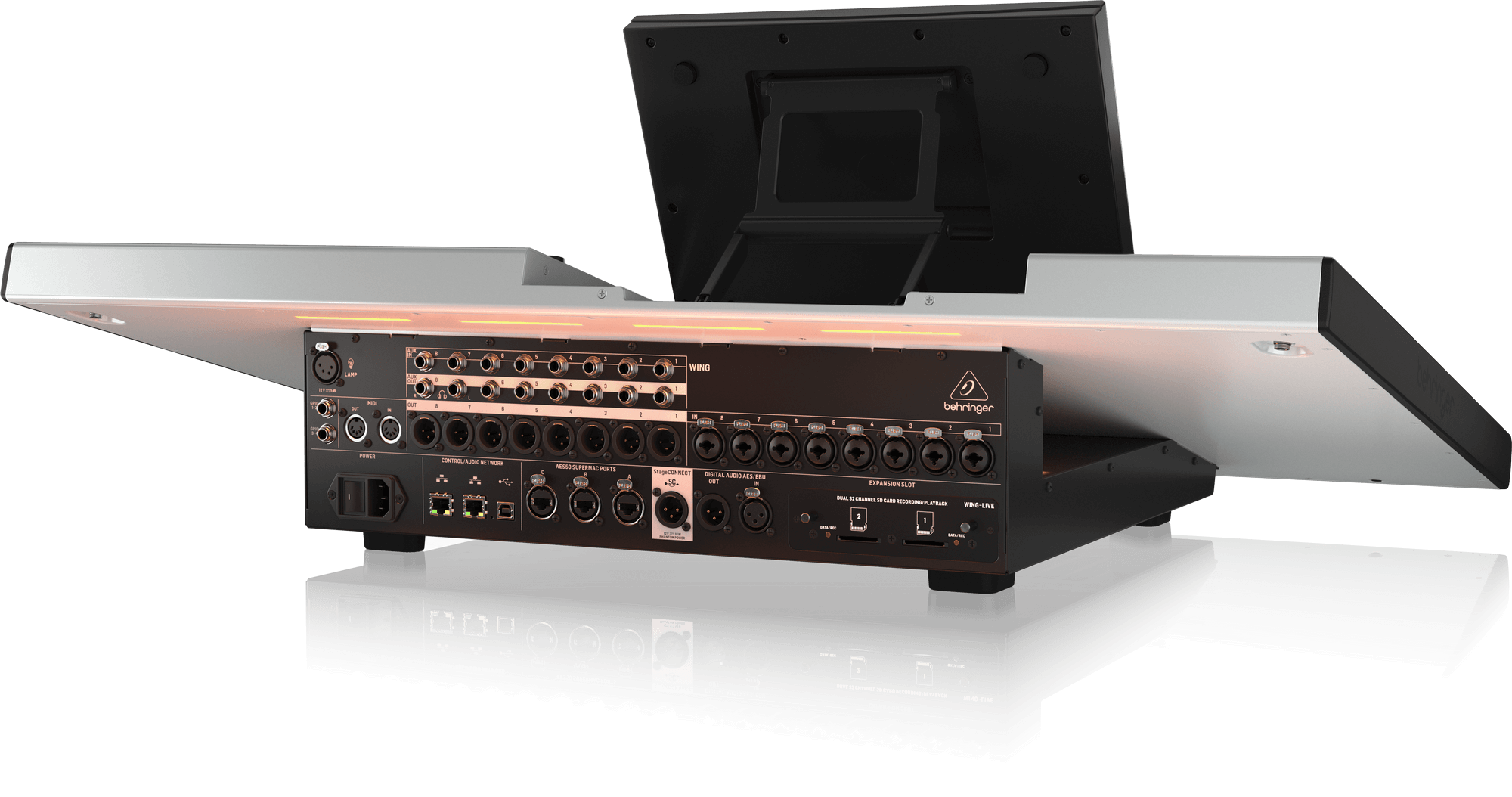

• Local Analog I/O: 8 Midas PRO mic preamps, 8 line outputs, 8 auxiliary inputs/outputs
• Digital Network I/O: 3 x AES50 ports (144 in / 144 out), Ultranet, AES/EBU stereo input/output
• USB Interface: 48 x 48 channel USB 2.0 audio interface for seamless DAW integration
• Expansion Slot: Built-in expansion port supporting optional Dante, MADI, or ADAT cards
• Additional Connectivity: MIDI In/Out, GPIO (2 in / 2 out), dual Ethernet ports for network control
• Control: Comprehensive remote control via tablet or PC applications
• Construction: Robust, tour-ready chassis with premium aluminum side panels

Included Accessories

• Standard IEC Power Cable
• Quick Start Guide and Warranty Information
• (Note: Protective dust covers and flight cases are highly recommended and sold separately)
