ZLX

Item ID: 23

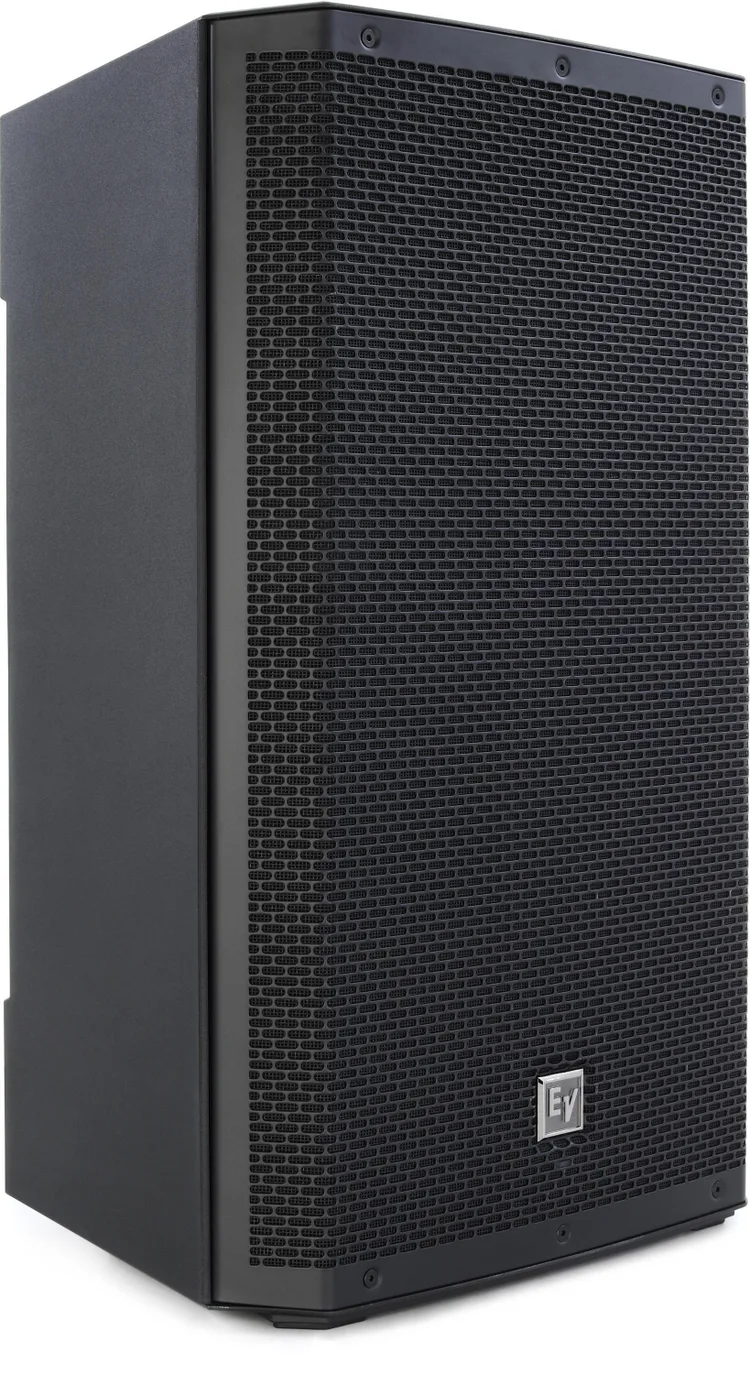

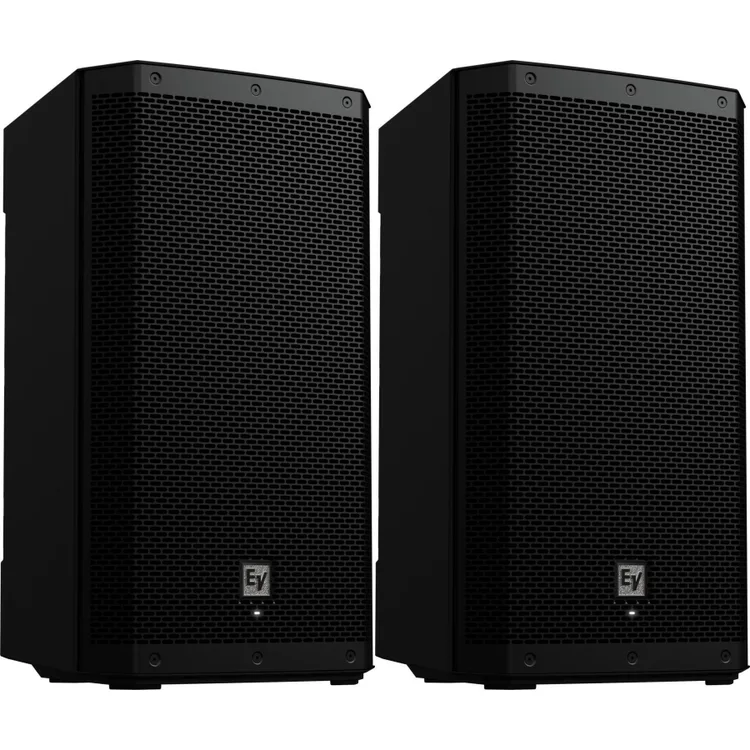

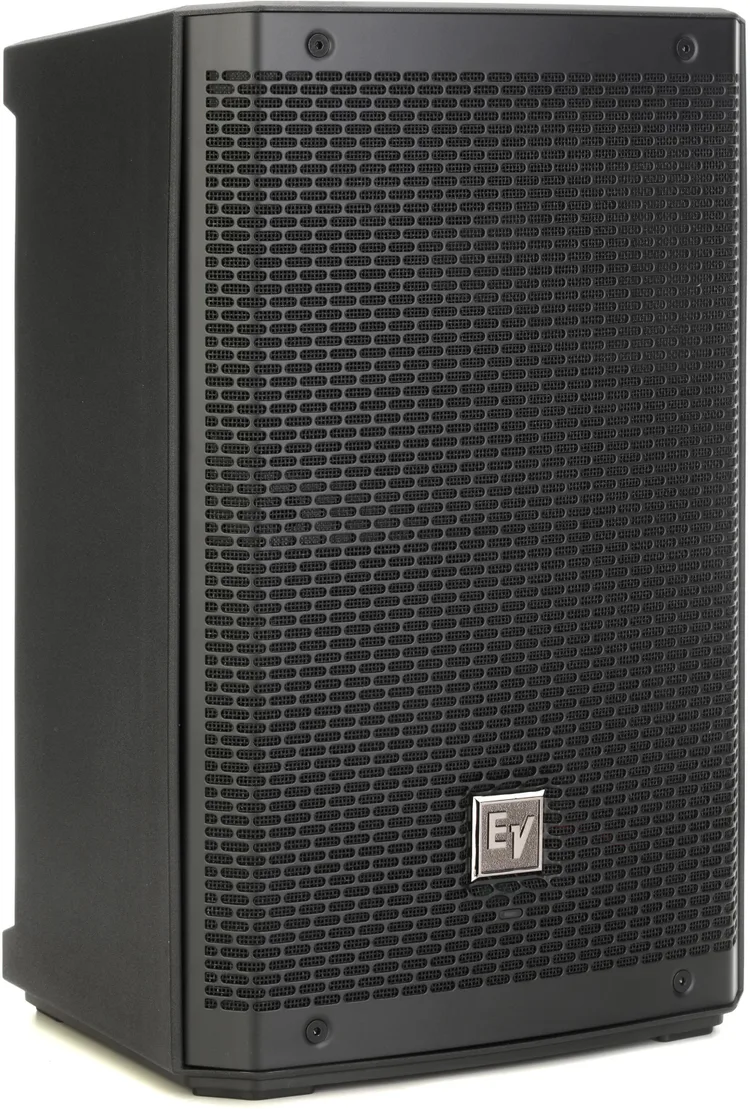

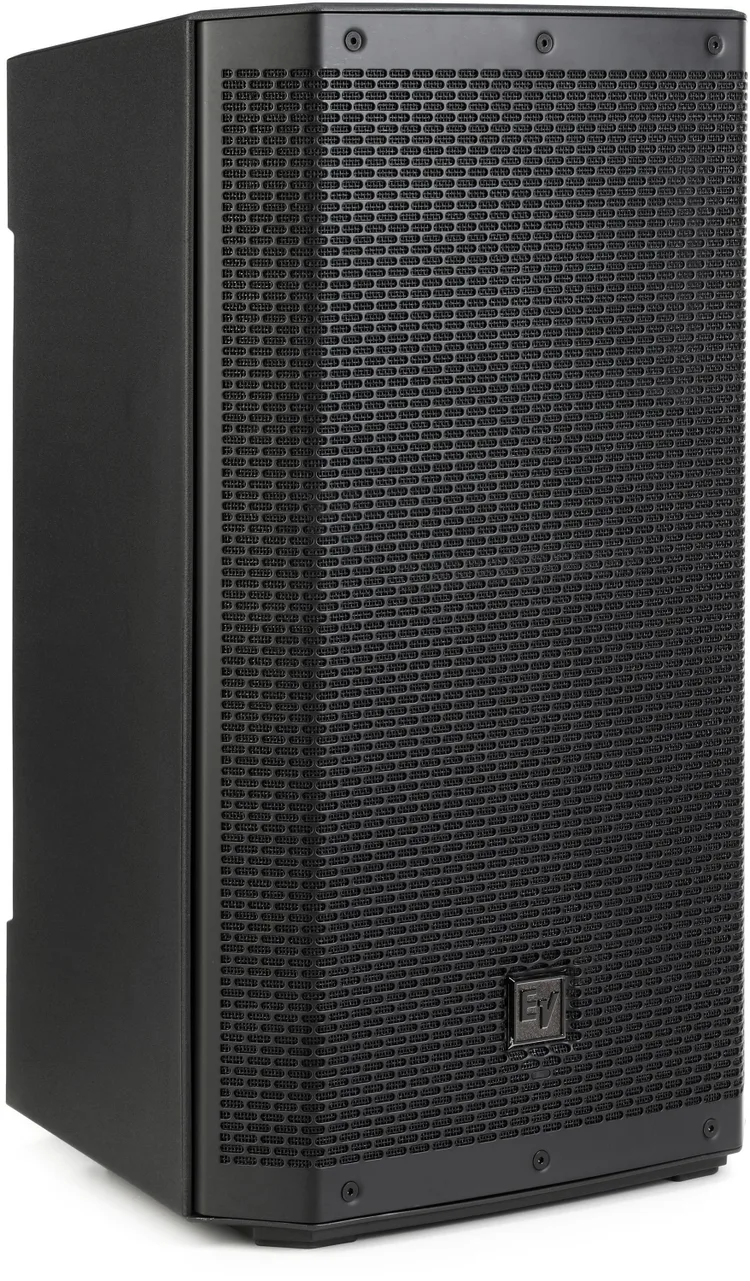

Electro-Voice ZLX Series

8-inch, 12-inch, and 15-inch Full-Range Loudspeakers (Available in Powered G2 and Passive Models)

Overview

The Electro-Voice ZLX Series is the undisputed global standard for lightweight, high-performance portable sound. With the introduction of the next-generation ZLX-G2 line, EV has expanded the family to include an ultra-compact 8-inch model alongside the legendary 12-inch and 15-inch versions. Designed for musicians, DJs, fitness instructors, and A/V rental companies, the ZLX series combines custom-engineered drivers with a highly ergonomic, multi-position composite enclosure. The powered models elevate the series even further with "Powered by Dynacord" DSP, featuring a built-in digital mixer, high-quality effects, and seamless Bluetooth® control and streaming. Offering best-in-class performance and unmatched value, the ZLX series ensures pristine audio reproduction in any mobile or installed application.

Models & Range

• Full Range Models:
• ZLX-8P-G2 / ZLX-8-G2: 8-inch 2-way loudspeaker (Powered / Passive)
• ZLX-12P-G2 / ZLX-12-G2: 12-inch 2-way loudspeaker (Powered / Passive)
• ZLX-15P-G2 / ZLX-15-G2: 15-inch 2-way loudspeaker (Powered / Passive)
• Subwoofer Models: There are no dedicated ZLX series subwoofers. The ZLX full-range models are engineered to pair perfectly with Electro-Voice ELX200 or EKX series powered subwoofers using the built-in crossover presets.

Key Features

• Premium DSP & Built-in Mixer (Powered Models): Driven by Dynacord, the onboard DSP features a built-in multi-channel digital mixer with studio-grade effects, AFS (Automatic Feedback Suppression), ducking, and PEQ—giving you complete control over your sound without needing external gear.
• QuickSmart Mobile App Integration: Powered versions offer seamless Bluetooth® connectivity for high-resolution stereo audio streaming (TWS) and full wireless control of mixer settings, EQ, and effects via your mobile device.
• SST Waveguide Technology: EV’s patented Signal Synchronized Transducers (SST) waveguide physically time-aligns the high and low-frequency drivers, resulting in incredibly precise and consistent acoustic coverage across the entire listening area.
• Ergonomic, Multi-Position Enclosure: Built from rugged polypropylene, the cabinet features a symmetrical 55° monitor angle and an innovative 23° "kick-back" angle, allowing it to function flawlessly as a main PA, a floor wedge, or a front-fill speaker.

Technical Specifications

• System Type: 2-way full-range point source loudspeaker
• Amplifier Power (Powered Models): 1000 W Class-D highly efficient amplification
• Power Handling (Passive Models): 1000 W Peak / 250 W Continuous
• Maximum Peak SPL (Powered): 126 dB (8-inch), 127 dB (12-inch), 129 dB (15-inch)
• Frequency Range (-10 dB): Down to 54 Hz (8-inch), 48 Hz (12-inch), 42 Hz (15-inch) depending on model and DSP preset
• High Frequency Driver: 1.4-inch titanium dome compression driver
• Low Frequency Driver: Custom-engineered 8-inch, 12-inch, or 15-inch woofer
• Coverage Pattern: 90° Horizontal x 60° Vertical
• Inputs (Powered Models): 2 x XLR/TRS combo jacks (Mic/Line/Hi-Z), 1 x 3.5 mm stereo input
• Outputs (Powered Models): 1 x XLR mix output
• Connections (Passive Models): Dual NL4 (speakON-compatible) connectors
• Enclosure Material: Durable polypropylene composite
• Rigging / Mounting: Standard 35 mm pole socket, multiple monitor angles

Included Accessories

• Standard IEC AC Power Cable (Included with powered models only)
• Printed User Manual and Quick Start Guide
• (Note: Custom padded slip covers and wall-mount brackets are highly recommended for transport and installation, available separately)
