Nuq

Item ID: 21

Turbosound NuQ Series

8-inch, 10-inch, 12-inch, 15-inch Full-Range Loudspeakers & 15-inch, 18-inch Subwoofers (Available in Passive and Powered "-AN" Versions)

Overview

The Turbosound NuQ Series is a premium, highly versatile family of point-source loudspeakers and subwoofers engineered for the most demanding professional portable PA and permanent installation applications. Renowned for their exceptional vocal clarity, defined transient response, and pristine broadband articulation, NuQ series cabinets feature custom-designed carbon fiber loaded low-frequency drivers and neodymium high-frequency compression drivers. The series is divided into passive models for use with external amplification and active "-AN" models, which integrate cutting-edge Klark Teknik Class-D amplification and ULTRANET digital audio networking. With rotatable waveguides and exceptionally rugged birch plywood enclosures, the NuQ series offers audio professionals a highly scalable, acoustically superior solution for theaters, corporate A/V, houses of worship, and live music venues.

Models & Range

• Full Range Models:

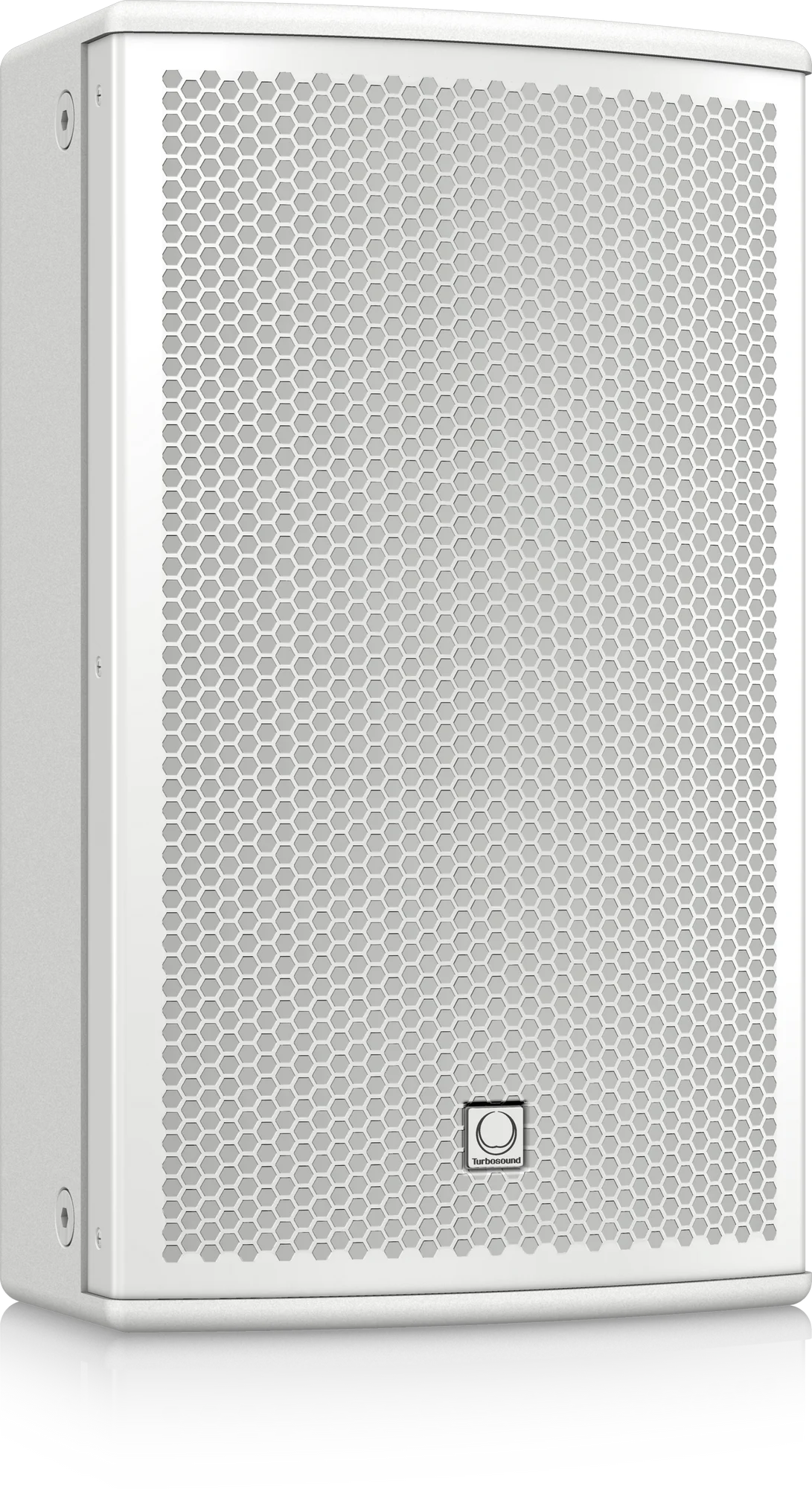

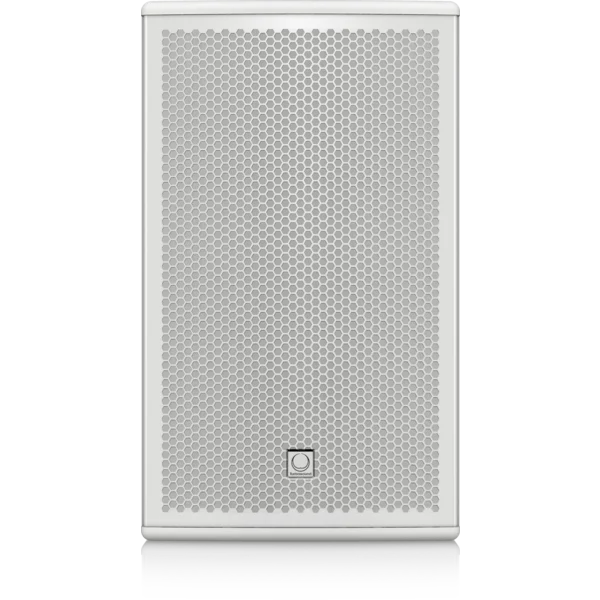

• NuQ82 / NuQ82-AN: 8-inch 2-way loudspeaker

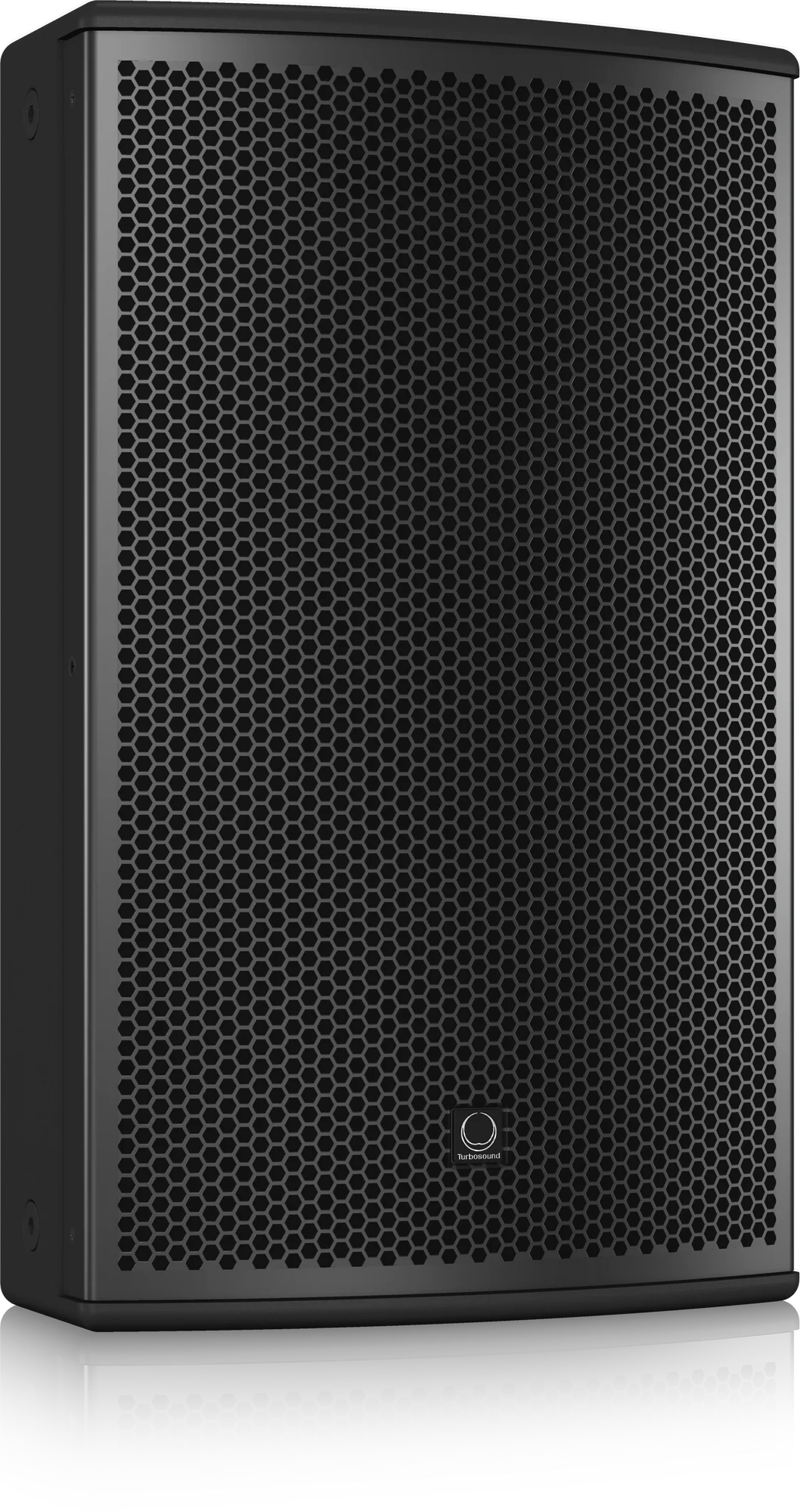

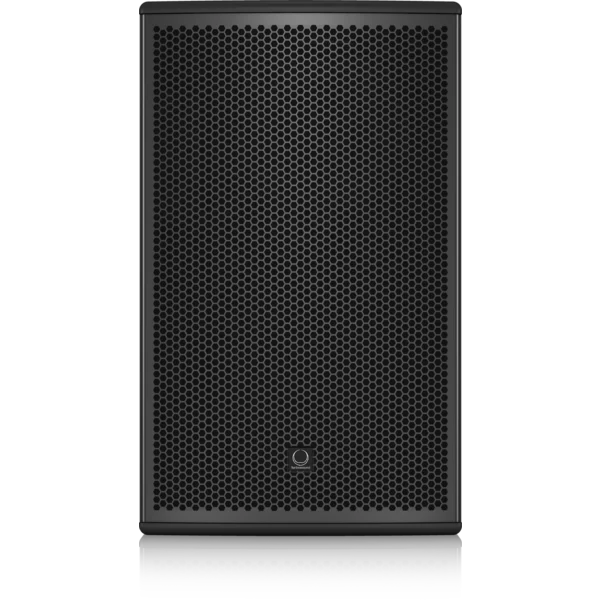

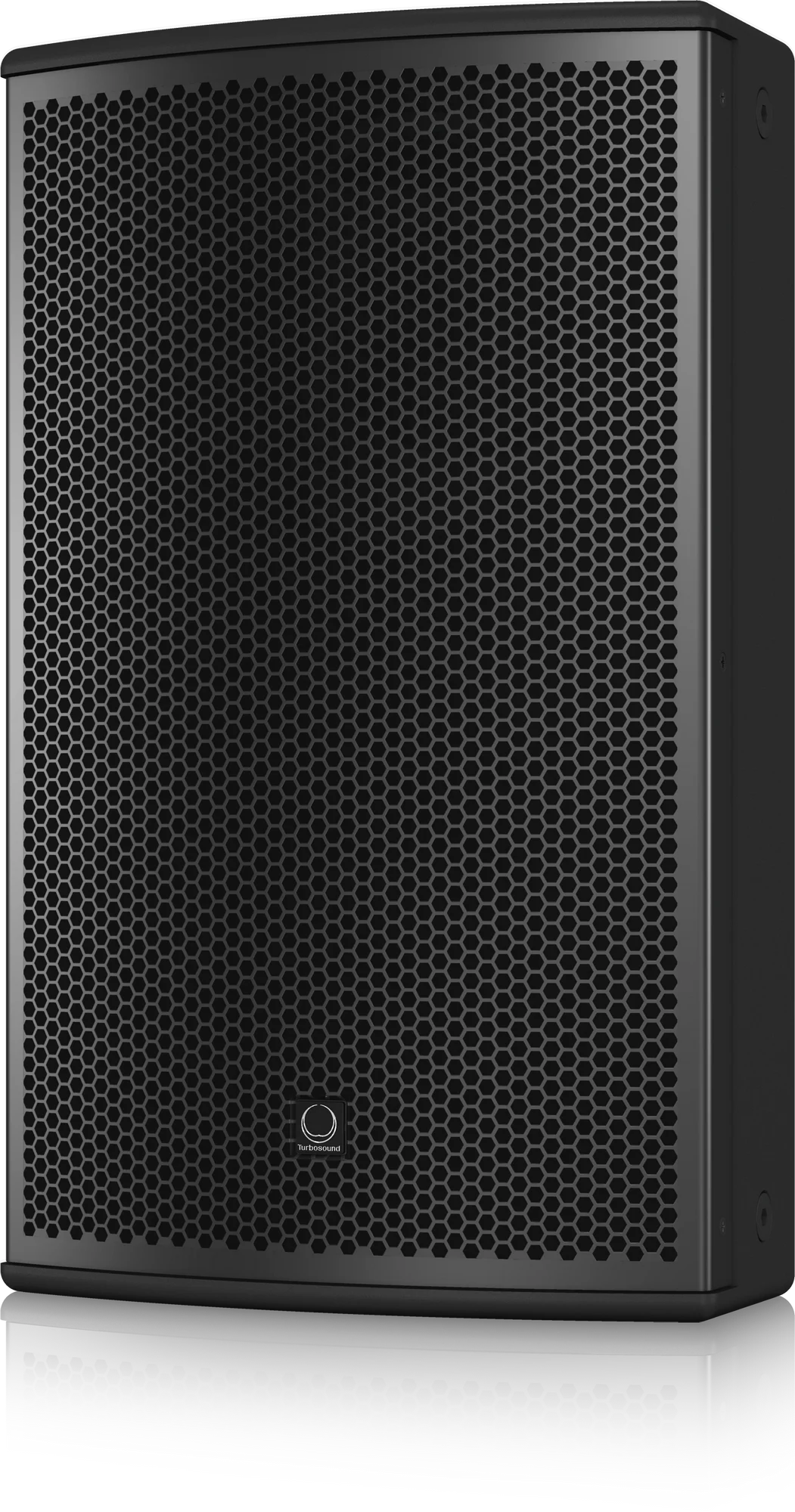

• NuQ102 / NuQ102-AN: 10-inch 2-way loudspeaker
• NuQ122 / NuQ122-AN: 12-inch 2-way loudspeaker
• NuQ152 / NuQ152-AN: 15-inch 2-way loudspeaker
• Subwoofer Models:
• NuQ115B / NuQ115B-AN: 15-inch bandpass subwoofer
• NuQ118B / NuQ118B-AN: 18-inch bandpass/bass-reflex subwoofer

Key Features

• Custom-Engineered Transducers: Features carbon fiber loaded low-frequency woofers for deep, tight bass and aluminum dome neodymium high-frequency compression drivers for extended high-frequency reproduction.
• Rotatable Converging Elliptical Waveguide: Provides smooth, even dispersion. The rotatable design allows the cabinet to be deployed either vertically as a main PA or horizontally as an ultra-low profile stage monitor without compromising coverage.
• ULTRANET Digital Audio Networking (On -AN Models): Allows for the seamless transmission of up to 16 independent channels of 24-bit digital audio and control data via a single CAT5 cable, directly connecting to compatible digital consoles and personal monitor systems.
• Klark Teknik DSP Technology (On -AN Models): Provides high-resolution, room-adaptable digital signal processing, including dynamic EQ, transparent limiting, and spatial contouring via a rear-panel LCD or remote PC software.
• Architectural-Grade Birch Enclosures: Constructed from 15mm (5/8-inch) or 18mm (3/4-inch) premium birch plywood finished in a hard-wearing semi-matt black paint, ensuring acoustic resonance control and road-ready durability.

Technical Specifications

• System Type: 2-way full-range point source / front-loaded or bandpass subwoofers
• Power Handling (Passive Models): Varies by model (e.g., NuQ122: 400 W continuous / 1600 W peak; NuQ152: 500 W continuous / 2000 W peak)
• Amplifier Power (-AN Powered Models): Featuring Klark Teknik Class-D technology (e.g., 600 W peak for 8" and 10"; up to 2500 W peak for 12", 15", and subwoofers)
• High-Frequency Dispersion: 100° H x 60° V (NuQ82, NuQ102) or 70° H x 70° V (NuQ122, NuQ152) rotatable waveguides
• Frequency Response (-3 dB): Typically 55 Hz to 18 kHz for 12" and 15" full-range models; down to 40 Hz or lower for subwoofers
• Analog Inputs (-AN Models): 1 x balanced XLR/TRS combo jack (Mic/Line) with XLR link output
• Digital Connectivity (-AN Models): 2 x Neutrik etherCON ports for ULTRANET input and link, USB port for PC remote control
• Connections (Passive Models): 2 x Neutrik speakON NL4 connectors (wired pin 1+ / 1- input, pin 2+ / 2- link)
• Rigging & Mounting: Multiple internal M10 and M8 threaded rigging points, dual-angle or standard 35 mm pole mount socket, and recessed carrying handles
• Grille: Rugged powder-coated perforated steel grille backed with reticulated foam

Included Accessories

• Neutrik powerCON Mains Cable (Included with -AN powered models only)
• Quick Start Guide and Warranty Information
• (Note: Custom wall brackets, flying yokes, and protective covers are highly recommended for installation and touring, available separately)
