IQ_12

Item ID: 12

$1180.00 $900.00

Turbosound iQ Series

iQ8, iQ10, iQ12, iQ15 Powered Loudspeakers and iQ15B Powered Subwoofer

Overview

The Turbosound iQ Series represents a pinnacle of networked audio innovation, engineered for professional touring, live events, and permanent installations. Powered by ultra-efficient Klark Teknik Class-D amplification and state-of-the-art digital signal processing, the iQ ecosystem delivers pristine sonic accuracy, massive output, and unmatched versatility. A defining hallmark of the series is its ULTRANET digital audio networking, which allows for flawless, zero-latency multi-channel audio distribution via standard CAT5 cabling, integrating seamlessly with compatible digital consoles and personal monitoring systems. Combined with advanced acoustic modeling and rugged construction, the iQ series provides audio professionals with unparalleled control and scalability for any medium-to-large acoustic environment.

Models & Range

• Full Range Models: The two-way active lineup includes the ultra-compact iQ8 (8-inch), the versatile iQ10 (10-inch), the standard-setting iQ12 (12-inch), and the high-output iQ15 (15-inch). All full-range enclosures are driven by an impressive 2,500 watts of power.
• Subwoofer Models: The iQ15B is a front-loaded 15-inch powered subwoofer delivering 3,000 watts of low-frequency extension. (The series also seamlessly accommodates the larger 18-inch iQ18B for applications demanding maximum low-end reinforcement).

Key Features

• Advanced Klark Teknik DSP: Comprehensive digital control including dynamic EQ, transparent limiting, Spatial Contour Control (SCC) for boundary compensation, and automatic feedback suppression.
• Acoustic Speaker Modeling: The built-in DSP engine features authentic, highly accurate emulations of some of the audio industry's most iconic and respected loudspeakers, adaptable at the push of a button.
• ULTRANET Digital Audio Networking: Send up to 16 independent channels of pristine digital audio and control data over a single CAT5 cable, completely eliminating ground loops, interference, and analog signal degradation.
• Professional Remote Control: Fully addressable via a high-contrast rear-panel LCD display, or remotely configurable through dedicated PC/Mac software via a direct USB connection.

Technical Specifications

• Amplifier Power (Full Range): 2,500 W Peak, Klark Teknik Class-D
• Amplifier Power (Subwoofer): 3,000 W Peak, Klark Teknik Class-D
• Acoustic Specifications (iQ10 Example): 10-inch low-frequency driver, 1-inch titanium dome compression driver; 55 Hz – 18 kHz frequency response (-3 dB); 129 dB Max peak SPL; 90° x 60° dispersion.
• Acoustic Specifications (iQ15B Subwoofer): 15-inch low-frequency driver with a high-excursion 4-inch voice coil; 40 Hz – 130 Hz frequency range (-10 dB); 130 dB Max peak SPL.

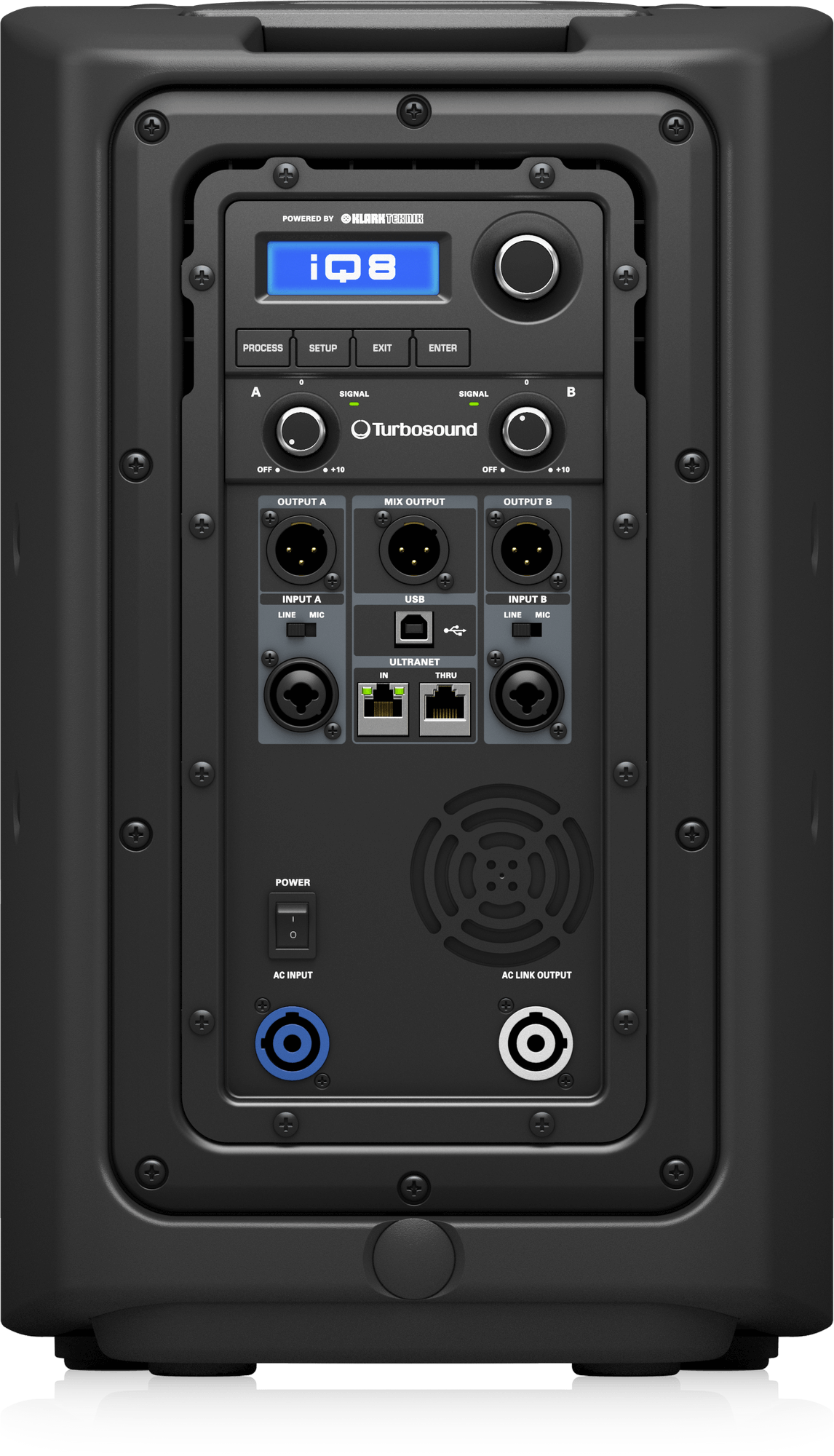

• Analog Inputs: 2 x XLR/TRS combo jacks (Line/Mic switchable) with independent gain controls and signal/clip LEDs.
• Analog Outputs: 2 x XLR link outputs (independent for each channel), 1 x XLR mix output.
• Digital I/O: 2 x RJ45 ULTRANET ports (In / Thru), 1 x USB Type-B for PC remote control and firmware updates.
• Power Connectivity: Neutrik powerCON input and link output for secure, professional daisy-chaining of mains power.

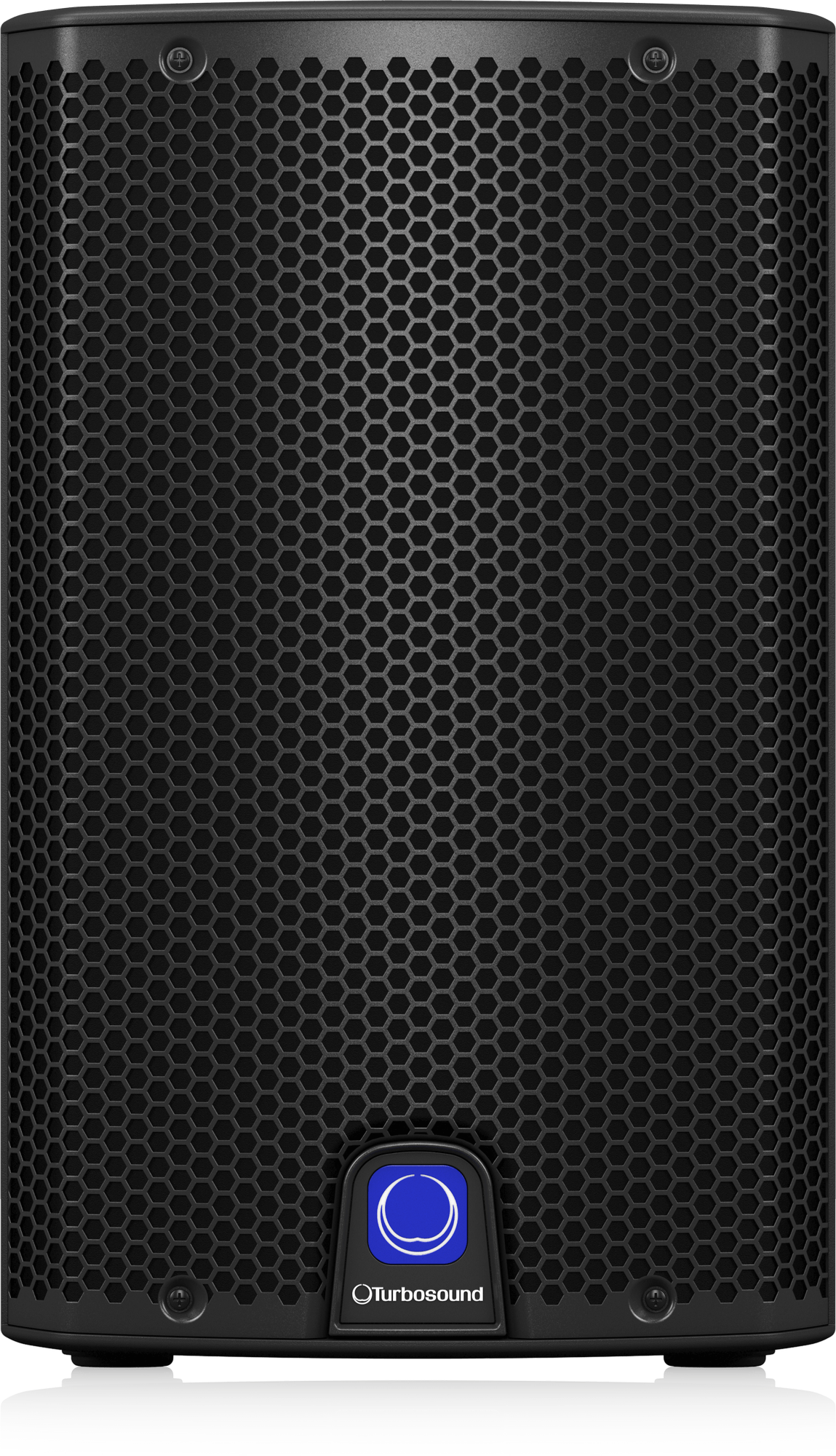

• Enclosure Construction (Full Range): Lightweight fiberglass-reinforced composite with rugged powder-coated perforated steel grilles and dual-angle (straight and downward tilt) pole mount sockets.
• Enclosure Construction (Subwoofer): 15 mm (5/8-inch) birch plywood with a hard-wearing semi-matt black paint finish, integrated heavy-duty steel casters, and a standard 35 mm pole mount.
• DSP Interface: Rotary push-encoder with LCD display for intuitive navigation of crossover, EQ, routing, and preset management.

Included Accessories

• Neutrik powerCON locking power cable
• Heavy-duty plated steel casters (included with iQ15B subwoofer models)
• Quick Start Guide and safety documentation
• (Note: Standard CAT5 ethernet cables for ULTRANET networking and USB cables for remote software control are sold separately)
